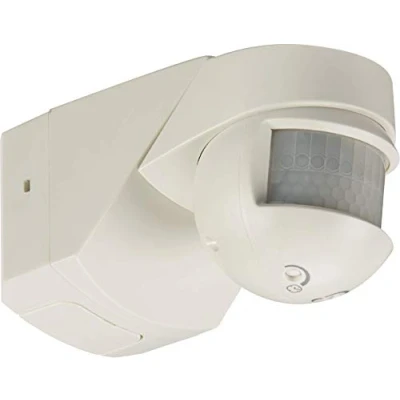

KnightsBridge IP55 200 PIR Sensor White

Electrical World

Professional stand-alone PIR unit to suit a variety of installation requirements - IP55 rated - 200° field of detection - 12m range @ 2.4m installation height - Adjustable head unit for optimum positioning - Easy to install - wire to the rear mounting plate then simply click the PIR unit into the mounting plate - Versatile mounting options including wall, ceiling or corner mounting - Automatic operation with a manual override option - Can be wired in parallel - Adjustable Lux - Adjustable time : 3 seconds to 30 minutes - Switching capacity: Max. 2000W Incandescent / Max. 225W LED - Includes shrouding kit for blocking of parts off the PIR to prevent - Certified to EN 60669-2-1, EN60669-1, EN 55015, EN 61547, EN 61000 - Supplied in Knightsbridge boxTechnical SpecificationProjection: 133Construction: PolycarbonateConstruction 2: & ABSFinish: WhiteClass: IIIP Rating: IP55Primary Voltage: 230V 50HzTechnical Specification:Finish: White IP Rating: IP55Dimensions: Height: 82mmWeight: 0.215KgWarranty: 1 Year

Amazon

Detection range of up to 12m at 2. 5m installation height Adjustable PIR head unit for optimum positioning Detection range of up to 12m at 2. 5m installation height.Mounting options for wall, ceiling or corner mounting, Weight: 0.46517537282 pounds, Manufacturer: KNIGHTSBRIDGE
