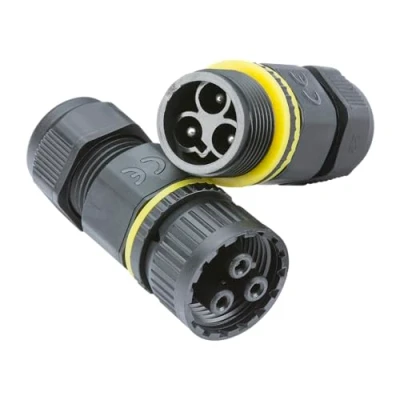

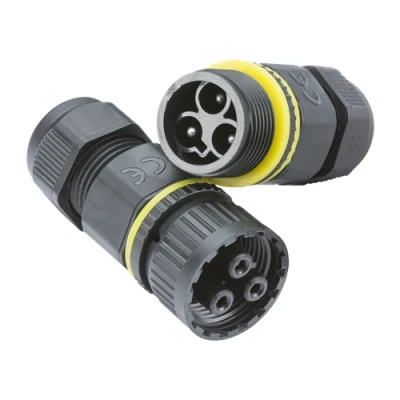

KnightsBridge IP68 16A Plug and Socket Cable Connector (3 Pole)

The Knightsbridge IP68 16A Plug and Socket Cable Connector is an essential solution for outdoor and underwater electrical applications. With its robust design and weatherproof capabilities, this 3-core connector is ideal for garden lighting projects and for repairing or extending existing electrical cables.

Key Features

This IP68-rated connector ensures reliable performance, even in the most demanding conditions. It is tested for water resistance at a pressure of 2 bar, making it suitable for outdoor installations and submerged applications. The connector is rated for 16A at 450V, ensuring it can handle a significant electrical load while maintaining safety and efficiency.

- IP68 rated (@2bar) for water and dust protection

- 16A 450V PTI 250 ratings

- Two-way connection for easy integration into existing systems

- Constructed from durable polycarbonate casing

- Features PA66 cable glands with silicone seals for added weather resistance

- Silver-plated copper screw fix terminals provide excellent electrical conductivity

- Compatible with cables with a minimum diameter of 5mm and a maximum diameter of 12mm

- M22 size cable glands are designed for compatibility with various wire gauges

Compatibility

This cable connector is designed to work with H07RNF 3-core cables ranging from 0.75mm² to 2.5mm². This versatility makes it an ideal choice for a wide array of applications, from connecting garden lighting to extending power connections in outdoor environments.

Construction and Design

The Knightsbridge connector features a refined design with a sleek black finish. The materials used in its construction include PA66 with a V-0 flame rating, ensuring durability while complying with rigorous safety standards. The dimensions of the connector include a diameter of 24mm and a length of 94mm, making it compact yet robust. Weighing just 0.054kg, the connector is lightweight and easy to handle during installation.

Certification

This product is certified to EN 62444 standards, ensuring that it meets the required safety and performance specifications for electrical connectors used in the UK. You can trust that this connector will provide reliable service and peace of mind in your residential or commercial wiring projects.

In summary, the Knightsbridge IP68 16A Plug and Socket Cable Connector is a trusted and high-quality choice for anyone looking to enhance, repair, or extend electrical connections in outdoor or underwater settings. With its easy installation process and premium materials, you can be confident in its performance and longevity.
