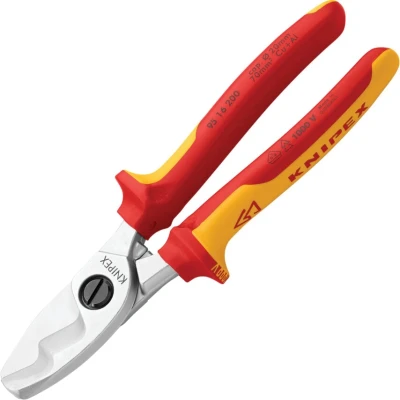

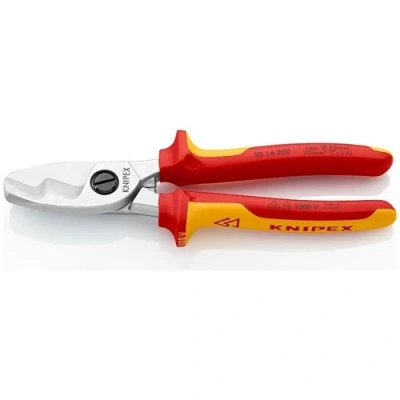

Knipex Cable Shears (2019 Model) 200mm

Zoro Tools

These VDE insulated cable shears are manufactured from specially selected tool steel and are suitable for cutting copper and aluminium cables. Not suitable for steel wire and hard drawn copper conductors. The product boasts precision ground, hardened blades that allow for clean and smooth cutting without crushing and deformation. The product has a one-handed operation whilst the initial and final cut (upper and lower blade) allow cables of up to 20 mm diameter to be cut. Low handforce is required due to the favourable lever ratio and special blade geometry. The guard prevents operators' fingers being pinched. Finished with an adjustable bolted joint, self-retaining screw. Features and Benefits Allows for one handed operation for ease of use Can cut cables up to 20mm in diameter Favourable lever ratio and specially designed blade geometry ensures easy cutting with minimal user effort Handles are VDE insulated up to 1000V for optimum user safety Guard prevents fingers from being pinched between the handles Manufactured from forged and oil hardened tool steel for optimum resilience Precision ground blades ensure accurate cutting without crushing or warping wires Typical Applications Electrical Engineering Construction

Electrical World

Knipex Cable Shears Available in 165mm and 200mm Sizes For cutting copper and aluminium single conductors as well as multiple stranded cables Not suitable for steel wire and hard drawn copper conductors Precision-ground, hardened blades Clean and smooth cut without crushing and deformation Easy cutting with one-hand operation Guard prevents operators’ fingers being pinched Adjustable bolted joint, self-retaining screw High-grade special tool steel, forged, oil-hardened 95 16 165 Cable Shears- 165mm Cutting capacity copper cable, multiple-stranded (diameter) 15 Ø mm Cutting capacity copper cable, multiple-stranded 50 mm² 95 16 200 Cable Shears with twin cutting edge- 200mm By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables up to Ø 20 mm can be cut in one-hand operation Cutting capacity copper cable, multiple-stranded 70 mm² Less effort required due to favourable lever ratio and optimised cutting edge geometry

ManoMano

Knipex: Cable Shears VDE-tested Insulated Multi-component Grip 200mm For cutting copper and aluminium cables. Not suitable for steel wire and hard drawn copper conductors. Precision ground, hardened blades. Clean and smooth cut without crushing and deformation. Easy cutting with one-hand operation. Initial and final cut (upper and lower blade) allows cables of up to 20 mm dia. to be cut. Low handforce required due to favourable lever ratio and special blade geometry. Guard prevents operators' fingers being pinched. Adjustable bolted joint, self-retaining screw. High-grade special tool steel, forged, oil-hardened. MPN: 9516200 EAN: 4003773026761 Cable Shears VDE-tested Insulated Multi-component Grip 200mm Attributes: Capacity: 20mm Cutting Capacity: Wire size: 2/0 AWG Ø20mm - 70mm² Handle Material: Plastic Insulated: Yes Jaw Opening: 20mm MFR Part No.: 95 16 200 Number of Pieces: 1 Overall Length: 200mm Tool Features: Soft grips Right and Left Handed Users Type: Self Grip Pliers

Amazon

For cutting copper and aluminium cables Not suitable for steel wire and hard drawn copper conductors Precision-ground, hardened blades Clean and smooth cut without crushing and deformation Adjustable bolted joint, self-retaining screw, Weight: 0.7495716908 pounds, Manufacturer: Knipex
