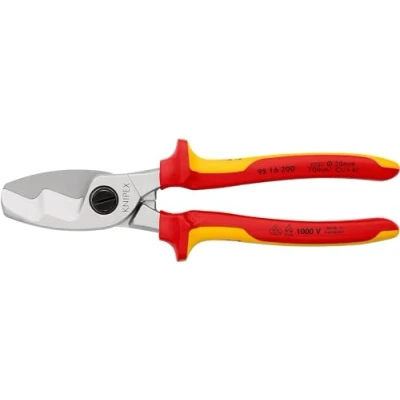

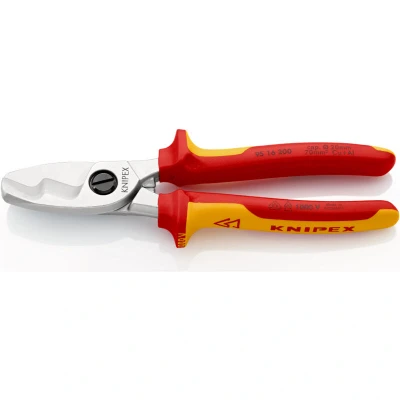

Knipex Cable Shears with twin cutting edge chrome plated, insulated multi component grips, VDE tested 200 mm (self service card/blister) 95 16 SB

Zoro Tools

Knipex VDE 1000V Cable Shears cut stranded Cu and Al cable up to 70 mm? in two operations The Knipex 9516200SB (carded) Cable Shears With Twin Cutting Edge can cut cable with large cross-sections professionally and conveniently. The twin cutting edge of the Knipex 9516200 is literally special in two respects. With larger cable cross-sections there is an initial cut into the insulating sheath in the front cutter profile; the metal conductors are subsequently cut in the back cutter profile. This division of work on the cutting edge brought about by its design makes work easier for the user. The initial cut in the front profile also provides a hand-friendly grip position for large cross-sections. Unlike diagonal cutters with blades that meet at an obtuse angle, and which crush cable insulation and deform cable ends, the Knipex 95 16 200 cable shears cut with the twin cutting edge using a scissors action. This principle produces a substantially better result, because the cable is not crushed, but is cut very smoothly and cleanly. They are therefore excellent for shortening stranded and finely stranded Cu and Al cables, also with large cross-sections. For reasons of design, the cable shears must not be used to cut steel wire or hard drawn copper conductors. These cable shears conserve the manual force of the fitter and protect the cable insulation by preventing crushing. The precision ground, hardened twin cutting edge delivers lasting clean, even cuts. Due to the favourable transmission ratio, comparatively little effort is required. The precisely running bolted joint also contributes to comfortable work using these cable shears. The bolted joint is self-locking and can be adjusted where necessary. The insulating multi-component grips offer users additional protection from an electric shock when working on live parts. Features: For cutting copper and aluminium cables Not suitable for steel wire and hard drawn copper conductors Precision-ground, hardened blades Clean and smooth cut without crushing and deformation Adjustable bolted joint, self-retaining screw Low handforce required due to favourable lever ratio and special blade geometry Pinch guard prevents operators' fingers being pinched Adjustable bolted joint, self-retaining screw High-grade special tool steel, forged, oil-hardened Specification: Part number: 9516200SB Shears: chrome plated Handles: insulated with multi-component grips, VDE-tested Dimensions: 200 x 68 x 19 mm Standard: DIN EN 60900 IEC 60900 Cutting capacity copper cable, multiple-stranded: 70 mm? Cutting capacity copper cable, multiple-stranded: 20 mm AWG: 2 / 0 VDE tested: yes Weight: 0.340kg

ManoMano

The Knipex 95 Series Cable Shears are fitted with multi-component grips, VDE tested up to 10,000V and safe for work up to 1,000V. They conform to DIN EN / IEC 60900. For cutting copper and aluminium cables without crushing or deforming as well as multiple stranded cables. Not suitable for steel wire and hard drawn copper conductors.Made from high-grade special tool steel, forged, oil-hardened. Chrome plated finish. Precision ground, hardened blades for easy cutting, one-hand operation. The handles are fitted with guards that prevents operators fingers being pinched. It also features an adjustable bolted joint, self-retaining screw.VDE Cable Shears feature a twin cutting edge, initial and final cut (upper and lower blade) allows cables of up to 20mm dia. to be cut. Low effort required due to high transmission ratio and blade geometry.

Amazon

For cutting copper and aluminium cables Not suitable for steel wire and hard drawn copper conductors Precision-ground, hardened blades Clean and smooth cut without crushing and deformation Adjustable bolted joint, self-retaining screw, Weight: 0.7495716908 pounds, Manufacturer: Knipex
