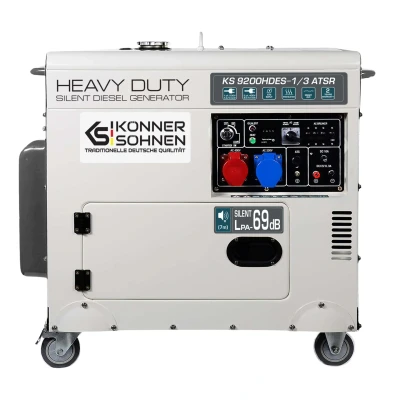

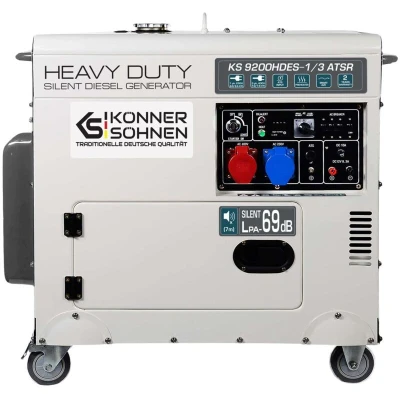

Könner & Söhnen KS 9200HDES 1/3 ATSR Power generator 18hp, 4 stroke diesel engine with E start, preheater, automatic voltage regulator, low noise, 7500/6400 watts, 1x16A (400V)/ 1x32A (230V)

The Könner & Söhnen KS 9200HDES-1/3 ATSR is a sound-insulated Heavy Duty diesel generator with selectable 230V single-phase and 400V three-phase output. It provides 6.0kW rated power in 230V mode or 7.0kW rated power in 400V mode, with electric starting, AVR voltage regulation, pre-start heating and an ATS connection for compatible automatic backup installations. Its enclosed four-wheel design helps reduce operating noise and makes positioning easier. Free delivery to mainland Great Britain only. At a glance Key specifications Rated / maximum power at 230V 6.0kW / 6.5kW Rated / maximum power at 400V 7.0kW / 7.5kW Output selection 230V single phase or 400V three phase via VTS switch AC sockets 1 × 32A 230V Commando (CEE) socket; 1 × 16A 400V three-phase Commando (CEE) socket Starting Electric, with pre-start heating Fuel tank / runtime 20 litres / approximately 11.1 hours at 50% load Noise level, LpA at 7m / LWA 69dB / 94dB ATS connection Yes; compatible ATS equipment and professional installation required Net weight 168kg Why choose the KS 9200HDES-1/3 ATSR? Selectable single- or three-phase output: the VTS switch selects 230V or 400V operation for compatible equipment. Sound-insulated enclosure: the metal housing reduces operating noise and helps protect the generator from external damage. Keep the generator dry and follow the manual's operating clearances. Heavy Duty diesel engine: the air-cooled KS 520HD-V engine is designed for demanding use, with correct operation and scheduled maintenance essential to service life. Automatic backup capability: a dedicated ATS output supports a compatible automatic transfer system. Electric starting: key-operated electric start is supported by a 30Ah starter battery. Cold-weather starting support: pre-start heating helps start the diesel engine in lower temperatures. Voltage regulation and monitoring: AVR helps stabilise output, while the LED display shows voltage, frequency and operating hours. Integrated transport set: four fitted wheels and enclosure handles help position the 168kg generator on suitable surfaces. Power, fuel and connections Plan your load Size equipment against the rated output and allow for motor starting loads. For service life, the manual recommends continuous loads of no more than 80% of rated power: 4.8kW at 230V or 5.6kW at 400V. Select one voltage mode Use the VTS switch to select 230V single phase or 400V three phase . Do not energise both AC circuit breakers at the same time. In 400V mode, distribute the load across all three phases; the manual limits phase imbalance to 20%. ATS installation The generator has an ATS output for a compatible automatic transfer system. Mains backup equipment and changeover wiring must be selected and installed by a qualified electrician. Technical specifications Electrical output 230V rated / maximum output 6.0kW / 6.5kW 400V rated / maximum output 7.0kW / 7.5kW Voltage / frequency 230V single phase or 400V three phase / 50Hz Power factor 1 at 230V / 0.8 at 400V Maximum current 28.26A at 230V / 13.54A at 400V AC sockets 1 × 32A 230V Commando (CEE) socket; 1 × 16A 400V three-phase Commando (CEE) socket DC outlet 12V / 8.3A Voltage regulation AVR ATS output Yes LED display Voltage, frequency and operating hours Engine and fuel Fuel Automotive diesel suitable for the season Engine KS 520HD-V; single-cylinder, four-stroke, air-cooled diesel Displacement 498cm³ Engine power 18.0hp / 13.24kW Starting system Electric with pre-start heating Fuel tank capacity 20 litres Runtime at 50% load Approximately 11.1 hours Engine oil capacity 1.65 litres Recommended oil SAE 10W-30 or SAE 10W-40 for four-stroke engines Starter battery 30Ah Size, weight and noise Sound pressure level, LpA at 7m 69dB Sound power level, LWA 94dB Protection rating IP23M Alternator winding Copper Housing Sound-insulated metal enclosure with four-wheel transport set Product dimensions (L × W × H) 900 × 545 × 905mm Packed dimensions (L × W × H) 960 × 570 × 985mm Net / packed weight 168kg / 178kg Runtime varies with load, fuel quality, weather, altitude and equipment condition. Sound pressure at a stated distance and sound power are different measurements and should not be compared directly. What's included KS 9200HDES-1/3 ATSR diesel generator with integrated four-wheel transport set English owner's manual 32A 230V Commando (CEE) plug 16A 400V three-phase Commando (CEE) plug Start key 8 × 10mm, 12 × 14mm and 17 × 19mm open-ended

Branded engines Engines for diesel generators, as well as for gasoline, are manufactured under license DIMAX Int. GmbH and are marked with their own brand with the logo. In all models, the power reserve of the engine in relation to the alternator allows you to issue the declared voltage and maintain its stability in the full range of voltages. All engines are tested for long continuous operation, and then disassembled and examined for faults. Each engine and each generator has an individual serial number, which allows us to control the quality of production and service. VTS system Universal generators 2 in 1 with a unique phase switching system VTS (Voltage Transfer Switch), which allows you to use one generator as a single-phase (230V) and three-phase (400V) with almost no loss of power. Each mode has its own automatic protection. No need to buy two separate generators. Automatic transfer switch The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored. Pre-start heating (PREHEATER) Diesel generators series "HEAVY DUTY" are equipped with a pre-start heating function, which allows you to run the generator in the winter without much effort. Housing All-season, noise-absorbing, vandal-proof casing provides effective protection of the generator and prolongs its service life. The casing is equipped with handles and transport wheels for easy movement. Transport wheels The generator housing is equipped with a 4-wheel transport set for easy movement of the unit.
