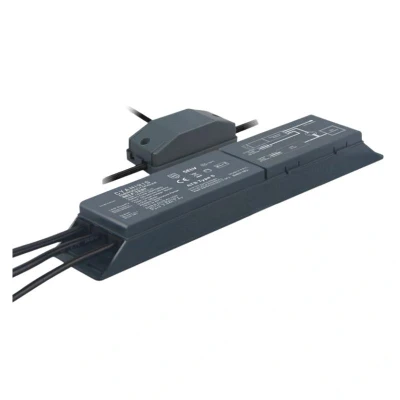

Kosnic Standard 3W Universal Emergency Module CEW03LIL/N

National Shower Spares

Kosnic 3W Universal Emergency Module - White (CEW03LIC/N). The Kosnic universal emergency module can provide LED lighting fixtures with up to 3W of power for three hours in the event of a power cut. It is suitable for use with class III luminaires with integrated LEDs and separate LED drivers and has a replaceable internal lithium-ion battery. The Kosnic universal emergency module can be installed within a luminaire or within a ceiling void and requires a permanent live un-switched power supply to maintain charge. 3 hours rated duration For class III luminaires with integrated LEDs and separated LED drivers Internal Li-Ion battery for improved lifespan allowing frequent partial discharge without capacity reduction For maintained or non maintained emergency lighting systems Supplied with plug-in three-way connector with DC jacks that can also be wired via internal terminals Suitable for use in luminaires for high-risk task area lighting Voltage change-over threshold according to EN 60598-2-22 Conforms to EN 61347-1 and EN 61347-2-7 Over-charge, over-current, short-circuit and deep dishcharge protection for battery Genuine brand new NSS product, covered by a NSS manufacturer's guarantee.

City Plumbing

The Kosnic Universal Emergency Module (UEM) is suitable for Class III luminaires with integrated LEDs and separate LED drivers. The unit will supply the luminaire with up to 3 watts of power for three hours. The UEM will adjust the DC voltage output within the UEM's limits to the level required to operate the luminaire and then adjust the current to limit the power to a maximum of 3 W to ensure an operation time of three hours. The UEM has a replaceable internal lithium-ion battery and can be installed within a luminaire or within the ceiling void to provide a back-up supply in the event of a power cut. The UEM requires a permanent, un-switched, live power supply to maintain the battery charge.
