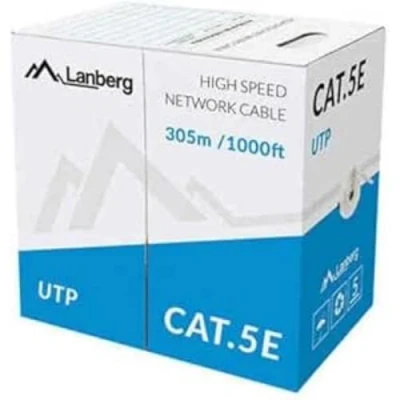

lanberg LCU5 11cc (0305 Stranded Network Cable Cat 5e UTP 305 m Grey

Lanberg Lcu5-11cc-0305-s Utp Cat 5e Network Cable 305 M. Establish reliable network connections with the LANBERG LCU5-11CC-0305-S UTP CAT 5E network cable. This 305m roll features unshielded twisted pair (UTP) construction with copper-clad aluminum (CCA) conductors for efficient data transmission up to 100MHz. Designed for indoor use, it boasts a printed meter counter for easy installation and durable PVC insulation. Ideal for all your networking needs, providing a solid foundation for fast and stable connectivity. Product specification:- LAN cable category 5e UTP (unshielded).- Length 305m.- The wires are made of copper conductor cable (CCA).- AWG 24 (4.- 2.- 0.2mm).- Conductor stranding:stranded.- Printed length counter at every meter of cable.- External PVC insulation:5.0mm.- HDPE conductor insulation:0.93mm.- Operation up to 100Mhz.- Package:cardboard box.- Packaging dimensions (W x D x H):36x23x36 cm.Electrical characteristics (20 degrees):- Conductor resistance (max.):30.- 45Om / 305m.- Insulation resistance (min.):5000mOm km.- Pair-to-Ground capacitance:< 330PF / 100m.- Characteristic impedance:< 100Om (+/- 15).- Transport and storage temperature:0.- 60 degrees.- Operating temperature:- 20.- 70 degrees.- Working distance:80-120m.- Maximum operating frequency:100 MHz.- HDPE isolation:0.93 mm.- ICT category:Cat.5/5e.- Shielding type:U/UTP.- Cable type:Stranded.- AWG:24.- Material:Copper plated (CCA).- Wire braid:Plastic shield.- Cable length:305 m.- PVC jacket:5 mm.- Cable length:30500 cm.- Specialized:Indoor. tradeinn Techinn

Category: 5e UTP – backwards compatible Gauge: AWG 24 (4 * 2 * 0.2 mm), CCA Conductor design: Litzenldraht Cable coating: PVC Printed Length/on each meter of the cable.
