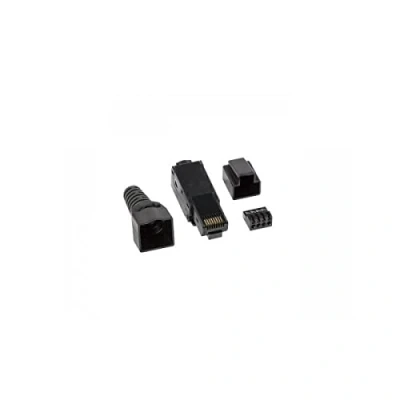

Lanberg RJ45 Cat.6 UTP Plug 8P8C Tool Less Connector

Lanberg Cat 6 Utp Tool Less Conector. Lanberg RJ45 tool-less network plug.The self-locking connector is designed for quick earning on wire and stranded twisted pair. The tool-less design allows quick assembly without the need for tools. The connection point is secured against the veins sliding out of the holders. Guide, color sticker, cable cover - all this makes making RJ45 cable easy.Features:- Tool-free assembly- Cable guide with a colored marking- The connector is fully compatible with TIA / EIA-568A / B- Cat. 6 UTPSpecification:- Easily assemble without special tool.- Suitable for solid wire from AWG 26/1 to AWG 22/1.- Compliance with Class E ISO/IEC 11801 Ed.2.2.2011-06,DIN EN 50173-1:2011-09.- Adjustable strain relief, suitable for cable jacket diameter from 6.0 to 9.0mm.- Load bar for faster and easier wire pattern termination.- Reuseable design.- 3µ gold plated phosphor bronze pin, durability: 750 cycles.- Operating temperature: -25 to 68, relateive humidity:- 85%, air pressure: 70 to106KPa.- Intermediate resistance: 20M in normal atmosphere pressure (not include bulk resistor).- Insulated resistance: 1000M in normal atmosphere pressure.- Withstanding voltage: DC 1000V (AC 700V), no puncture or spark-over in 1 minute.- Retention strength: 7.7kg between jack and plug.- Material: ABS, Metal- ICT category: Cat. 6- Shielding type: U/UTP. tradeinn Techinn

Standard CAT6 cable RJ-45 connector Gold-plated connector contacts Operating temperature range from -25 °C to 68 °C RoHS sustainability certificates.
