Laser 7386 Short Circuit Diagnostic Kit 16PC

Tracing a short circuit can be a challenging and time-consuming task. The Short Circuit Diagnostic Kit offers an effective solution with its innovative design, providing a set of circuit breaker fuses that replace traditional fuses. These circuit breakers are engineered to safely interrupt the circuit in the event of an overload, just as a conventional fuse would. However, their unique feature lies in their manual reset capability, enabling technicians to reset the circuit breaker fuses and conduct their tests repeatedly without needing to replace fuses each time.

Product Features

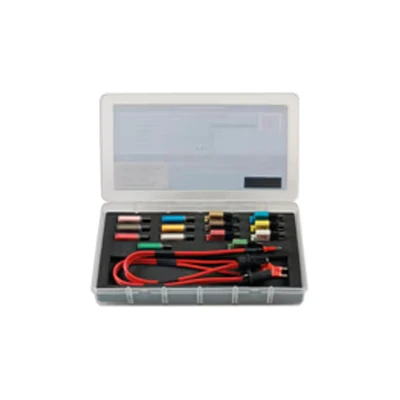

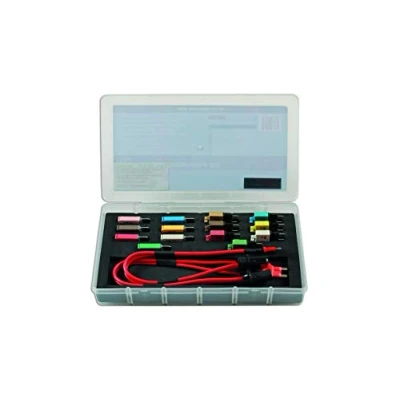

The kit comes complete with a selection of 14 circuit breaker fuses, consisting of:

- 7 standard blade manually resettable circuit breaker fuses

- 7 mini blade manually resettable circuit breaker fuses

The fuses cover a wide range of amperages, including 5A, 7.5A, 10A, 15A, 20A, 25A, and 30A, catering to various circuit needs and ensuring versatility in application.

Accessories Included

For enhanced usability, the kit is supplied with two 300mm (12”) extension loop leads. These leads provide better access during testing for both blade sizes, making the diagnostic process more efficient and user-friendly.

Compliance and Quality

Manufactured in accordance with SAE J553 standards (TYPE I, II, and III) for circuit breakers, this product meets industry specifications to ensure reliability and safety. Each component has been designed to withstand the rigours of electrical diagnostics and troubleshooting, ensuring long-lasting performance.

Ideal for Diagnostics

This kit is particularly beneficial for professionals working with electrical systems, allowing for quick identification and resolution of short circuits. It is ideal for use in conjunction with diagnostic tools such as the Laser Part No. 6551 - Digital Amps Clamp, elevating the diagnostic capabilities of technicians in various settings.

Conclusion

In conclusion, the Short Circuit Diagnostic Kit provides a comprehensive and practical solution for technicians seeking an efficient way to trace electrical faults. By incorporating resettable circuit breaker fuses, it eliminates the need for constant fuse replacements, streamlining the diagnostic process. This kit is an essential addition to any electrical toolkit, designed to enhance productivity while maintaining high standards of safety and reliability. Whether used in professional or personal applications, it delivers the performance and convenience needed for effective short circuit diagnostics.
