Legrand 004852 Terminal Strip 25Q 8 x 16 Q Black

ManoMano

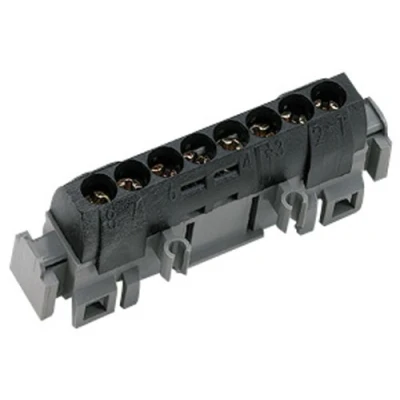

General description Legrand 04852 is an IP 2X distribution terminal block designed for efficient electrical connections. It features a phase connection in black and is suitable for various applications requiring reliable and secure wiring. Technical specifications Type: Screw distribution terminal block Insulation: IP 2X Maximum current: 100 A (with 25 mm≤ inlet), 80 A (with 16 mm≤ inlet) Voltage rating: 400 V~ Connections: 8 connections for wires ranging from 1.5 to 16 mm≤ Length: 75 mm Compatibility and accessories Can be fixed on symmetrical or asymmetrical rail Compatible with universal support ref. 0 048 11 Can be mounted on flat bar 12 x 2 Other information Compliant with standard IEC 60998-2-2 Delivered screws or cages are loose

Amazon

Connections: 8 x 1.5 mm to 16 mm Phase (black) Binds to symmetric or asymmetric rail, universal bracket ref. 0 048 11 flat bar or 12 x 2 Delivered with loose screws or cages Conform to IEC 60998-2-2 standard A max ~ 100 - 400 Volts ~ 25 mm with arrival A max ~ 80 - 400 Volts ~ 16 mm with arrival
