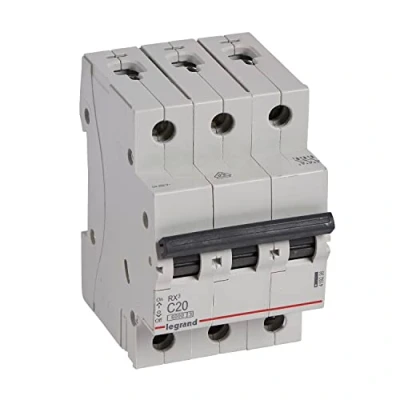

LEGRAND, RX3 Circuit Breaker Thermal Magnetic C Characteristic, 20A, 3 Pole, 6000A Breaking Capacity, 400VAC, 3TE, 419236

Use: our thermal magnetic circuit breaker is used to protect wiring systems against overload and short circuit and can also be used to control and disconnect the system. Switching capacity: According to the standard IEC 60898-1 for domestic installations, the cut-off capacity is 6000 amps. The tripping threshold in the event of a short circuit is between 100 A and 200 A (C characteristic between 5 in and 10 in) Installation: The circuit breaker is installed on a DIN standard DIN rail and can be connected with either a copper cable via prong rails (top or bottom) or fork rails (bottom). Protection type: the circuit breaker is protected against solid bodies larger than 12.5 mm ("fingerproof"). This corresponds to protection class IP20. The maximum degree of limitation of the transmitted energy is ensured by energy limit class 3. Technical details: C-characteristic, 20 A, 3-pole, 6000 A breaking capacity, 400 VAC, 3TE, thermal-magnetic circuit breaker, IP20, DIN standard DIN rail, 419236, Manufacturer: Legrand
