Lewden 6A Single Pole 1 Module B Curve 6kA 30mA Type A RCBO

City Plumbing

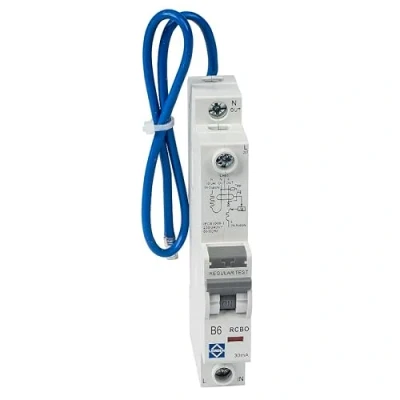

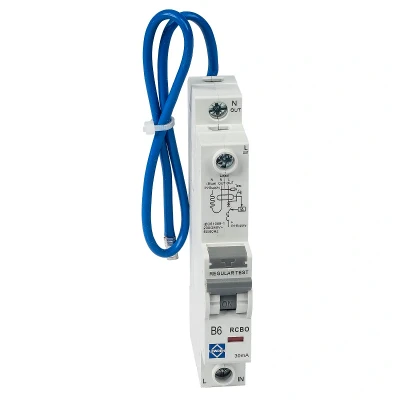

The Lewden is a 1 Module 6A x 6k A x 30m A Single Pole Type A RCBO with B tripping characteristics in the Pro range of residential consumer units. These RCBOs provide residual current and earth leakage protection alongside overcurrent protection, all within one compact unit. Combining overcurrent and earth fault protection into one unit allows only the faulty circuit to be interrupted, ideal for improving the safety of circuits, protecting key circuits and reducing unnecessary tripping. Their compact construction and 300mm blue neutral flying lead are ideal for fast, stress-free installations.

Electrical World

6kA RCBOsDesigned and tested for use with Lewden branded distribution boards.Residual current circuit breaker with integral overcurrent protection.Class A.Single module RCBOs are suitable for use in TN-S, TN-C-S, & TT network systems.Technical Specification:Rated Current: 6ATrip Curve: BRCD Class: AFor Cables ø: 1-16mm²Breaking Capacity: 6Frequency: 50/60HzPoles: 1P+NRated Operating Voltage: 230VExecution: DIN RAIL MOUNTINGResidual Current: 30mANet Weight: 0.17KGDimensions: 114x18x76mm (HWD)Standards: BS EN 61009-1

National Shower Spares

Lewden RCBO 6A 30mA B Curve 1MOD 6KA Type A (RCBO-06/30/SPA). 6kA 30mA single module RCBO type B- 6A; protects against earth leakage, overload and short circuit RCD class A Designed and tested for use with lewden branded distribution boards Residual current circuit breaker with intergral overcurrent protection Single module RCBOs are suitable for use in TN-S, TN-C-S and TT network systems Genuine brand new NSS product, covered by a NSS manufacturer's guarantee.
