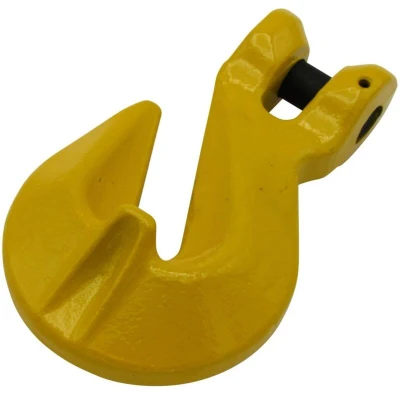

Lifting Clevis Grab Hook 10MM Grade 80 (3.15 Ton Shortening Clutch Chain 3.15T)

ManoMano

General description The Lifting Clevis Grab Hook is designed for use with 10MM chains and is made from high-quality Grade 80 (G80) material. This hook is primarily utilized in the lifting gear industry, particularly for chain slings, allowing for effective shortening of chains to meet specific lifting requirements. Technical specifications Chain Size: 10MM Material: Grade 80 (G80) Finish: Yellow (may vary) Factor of Safety: 4:1 SWL (Tonne): 3.15 Dimensions: A (MM): 74 B (MM): 29 C (MM): 12.5 D (MM): 12.5 E (MM): 46 F (MM): 125 G (MM): 12.5 H (MM): 13 Compatibility and accessories This grab hook is compatible with chain slings and is designed to be used in conjunction with them. Usage To use the grab hook, attach the chain to the hook, which will then shorten the chain to suit your lifting needs. Other information Conforms to: BS EN 1677. A test certificate will be supplied via email.

Amazon

Suits Chain Size - 10MM Safe Working Load - 3.15 Ton Grade 80 Yellow Painted Finish (Colour May Vary) A=71.5, B=30, C=13, D=12.5, E=45, F=123, G=12.4, H=12.3
