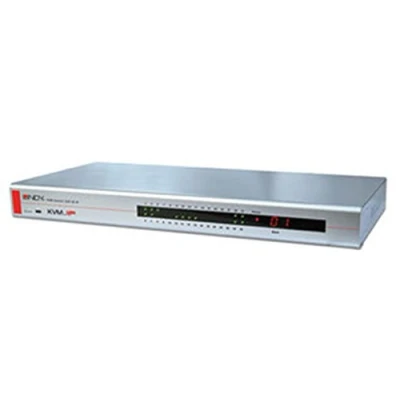

LINDY KVM Switch CAT 32 IP Combo, Port

Lindy 39631 Switch. Streamline IT management with the Lindy 39631 Combo KVM Switch. Control up to 32 PCs/servers from a single console (keyboard, mouse, VGA display) with resolutions up to 1920x1200. Easily switch via hotkeys, front panel buttons, or OSD. Daisy-chain up to 8 switches for managing 256 devices. Features hot-plug support, password security, and auto-logout. 1U rack-mountable. Connect via Cat5e/6 cables (modules not included). Ideal for system administrators and "always-on" environments. EU Plug. EU Plug.A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.The Lindy Combo KVM Switch is a hardware solution that allows direct control of multiple computers using a single keyboard, mouse and VGA monitor.It´s ideal for system administrators who want to control multiple computers or servers from a single, centralised location.The switch occupies only a single 1U space in a 19´´ rack and supports screen resolutions of up to 1920x1200, great for ensuring optimum clarity if used in digital media or graphic design scenarios.It provides 3 simple switching modes, via keyboard hotkeys, front panel buttons and On-Screen Display.setup and management options can be access only via the OSD.A local console can be connected to the 2 USB and VGA ports on the rear panel while a Daisy Chain VGA port can be used to connect up to 8 Lindy Combo series switches in order to manage to up to 256 multi platform computers with security features, password access and auto log out, perfect for large-scale control systems in transport hubs or surveillance centres.All the functions are accessible from the administrator through a simple to use On-Screen Display.PCs & connected KVM switches can be remove easily with hot plug support, allowing for maintenance to take place without the need for powering down all connected devices, essential within ´´always on´´ environments such as data centres or traffic management setups.Computers or servers can be connected to the 32 host ports on the rear panel via Cat5e/6 cables ad distances of up to 100m using USB+VGA (39634) or PS/2+VGA (39633) dedicated KVM modules (not included).Specifications:- AV Interface:VGA.- Console Interfaces:USB, PS/2.- Interface Standard:VGA, USB 2.0, PS/2.- Maximum Resolution:VGA:1920x120030Hz.- Console Number:1.- Max Number PC/Server:32.- Cascadable:Yes.- Switching Method:OSD, port buttons, Hotkey (configurable).- 19´´ Rack Mountable:Yes (1U.- Rack Mount Brackets included) Connectors:- Console Interfaces:VGA (Female), 2 x USB Type A HID (Female), 2 x PS2 (Female).- PC/Server Interfaces:32 x RJ45 (Female).- Other Interfaces:2 x DaisyChain Ports (1 x VGA Female + 1 x VGA Male).Power:5.5/2.5mm DC socket Physical Properties:- Dimensions (approx.) WxDxH:440x210x44mm (17,32x8,27x1,73in).- Housing Material:Metal.- Net Weight:1.5kg (3.31lb).- Operating Temperature:0°C.- 50°C (32°F.- 122°F).- Storage Temperature:-20°C.- 60°C (-4°F.- 140°F).- Humidity:0~90% RH (non-condensing).- Power Requirements:9VDC 2A. tradeinn Techinn

Supports up to 32 PC, Mac and SUN computers at distances of up to 100m using PS/2 or USB computer modules Local KVM Console support via USB, PS/2 & VGA Security features with password access, auto log out, SSL security and additional password protection for IP users
