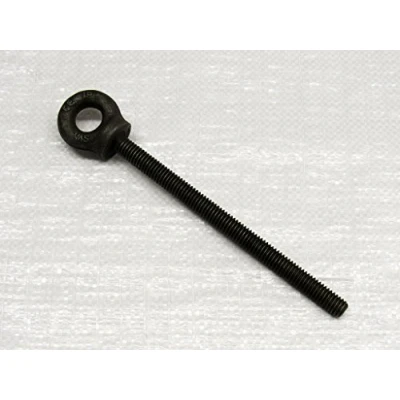

Long Shank Lifting Eye Bolt M12 0.4T (12MM Self Colour Collared Eyebolt 0.4 Ton)

ManoMano

Specifications: Product Code: SFMCEL12 Product Weight: 0.25kg 12MM 0.4 Ton Long Shank Eyebolt Thread Diameter - 12MM Finish - Self Colour Conforms To - BS4278 Code SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) Pitch SFMCEL10 0.33 22.5 33 13 10 9 22 10 177 1.50 SFMCEL12 0.4 28.5 41 19 12 16 25 13 177 1.75 SFMCEL16 0.8 36.5 52 23.5 16 15.5 33 14 177 2.00 SFMCEL20 1.6 43 62 28.5 20 21.5 39 16 177 2.50 SFMCEL22 2 51.5 73 32.5 22 19.5 43.5 19 177 2.50 SFMCEL24 2.5 56.5 82 36.5 24 23 48 21.5 177 3.00 SFMCEL30 4 73.5 104 47 30 28 66 28.5 177 3.50 These BS4278 0.4 Tonne Long Shank Self Coloured Eyebolts are excellent for numerous applications. They are hugely popular within the lifting industry as they are tested and certified for lifting. These eye bolts feature a long shank for applications where a longer thread is required. They can also be used for inclined lifts, however please note that the SWL will change dependant on the angle of lift. Test certificate Included

Amazon

Finish = Self Coloured Quantity = 1 Size - 12MM A- 28MM, B- 42MM, C- 19MM, D- 12MM E- 12MM F- 25.5MM, G- 12MM, H- 180MM
