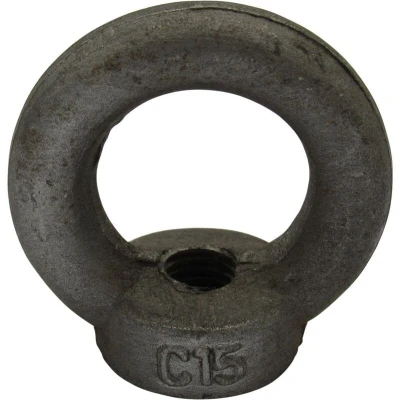

M12 Lifting Eye Nut Self Colour Threaded DIN582

ManoMano

Specifications: ProDuct Code: SFDINEN12 Product Weight: 0.16kg 340KG Drop Forged Eye Nut Thread Diameter - M12 Conforms To - DIN582 Finish - Self Colour Product Code SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) Pitch SFDINEN06 0.07 19.8 36.1 19.6 6 9.2 19 9.5 1.00 SFDINEN06ZP 0.07 19.5 36.3 19.9 6 9 19 9 1.00 SFDINEN08 0.14 20.1 36.3 19.4 8 9 18.3 9.2 1.25 SFDINEN08ZP 0.14 20 36 19.7 8 9 19 9 1.25 SFDINEN10 0.23 25.3 44.6 24.2 10 11.5 23 10 1.50 SFDINEN10ZP 0.23 24.3 45.3 24.4 10 11 23 10.7 1.50 SFDINEN12 0.34 30 53.8 29.4 12 15.5 23 12 1.75 SFDINEN12ZP 0.34 30.5 53 29.4 12 12 26.5 13.6 1.75 SFDINEN16 0.7 35 62.6 33.7 16 15 30 15 2.00 SFDINEN16ZP 0.7 34.7 62.7 34.2 16 15 30 15.4 2.00 SFDINEN20 1.2 41 72 38.5 20 18 36.8 16.8 2.5 SFDINEN20ZP 1.2 40 71.5 38.5 20 19 36.5 16.5 2.5 SFDINEN24 1.8 50 90 48.5 24 22 46 22.5 3.00 SFDINEN24ZP 1.8 50 89.4 49.4 24 21 44 21.1 3.00 SFDINEN30 3.2 64.5 108 58.6 30 29 61.5 24.3 3.5 SFDINEN30ZP 3.2 65 108 59 30 26 58.4 24.5 3.5 SFDINEN36

Amazon

Self Colour Eyenut - Thread DIA - M12 Conforms To - DIN582 Safe Working Load - 0.34 Ton A=30.5MM, B=54MM, C=29.5MM, D=12MM, E=15MM, F=23MM, G=12MM, Manufacturer: SecureFix Direct
