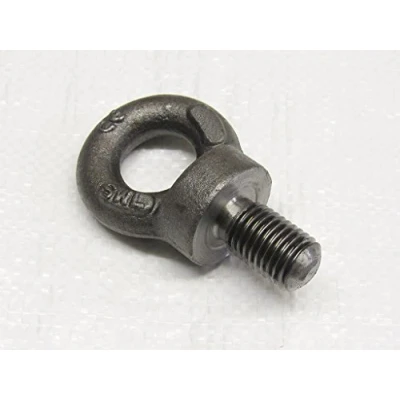

M30 Collar Lifting Eyebolt Threaded (30MM Self Colour 4 Ton)

ManoMano

Specifications: ProDuct Code: SFMCE30 Product Weight: 1.95kg 30MM 4 Ton Threaded Collar Eyebolt Thread DIA - 30MM Conforms To - BS4278 Finish - Self Colour CODE SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) Pitch SFMCE06 0.1 22 33 15.5 6 8 21 8.5 19 1.00 SFMCE08 0.15 22.5 33 14.5 8 8 20 9 19 1.25 SFMCE10 0.25 22.5 32.5 15 10 9 20 9 19.5 1.50 SFMCE12 0.4 22 33 14 12 9 21 13.5 19 1.75 SFMCE12ZP 0.4 23 32.5 14.5 11.5 9 19 9 19 1.75 SFMCE14 0.5 29 44 20.5 14 14 26 11.5 24.5 2.00 SFMCE16 0.8 29 44 20 16 11 25 12 24 2.00 SFMCE16ZP 0.8 29 44 20 16 11 25 12 24 2.00 SFMCE18 1 40.5 58 26.5 18 16 35 16 33 2.50 SFMCE20 1.6 40 59 27.5 20 17 36 15.5 33.5 2.50 SFMCE20ZP 1.6 40 59 27.5 20 17 36 15.5 33.5 2.50 SFMCE22 1.6 52.5 76.5 35.5 22 18 43.5 21 36 2.50 SFMCE24 2.5 51 76 35 24 22 45 21 40.5 3.00 SFMCE24ZP 2.5 51 76 35 24 22 45 21 40.5 3.00 SFMCE27 2.5 57.5 84 38 27 22.5 52 22.5 46 3.00 SFMCE30 4 67 96.5 43.5 30 27 58 26 53 3.50 SFMCE30ZP 4 64.5 95.5 42.5 30 27 59 27.5 47 3.50

Amazon

SWL - 4 Ton A=67MM, B=96.5MM, C=43.5MM D=30MM, E=27MM, F=58MM G=26MM, H=53MM Pitch = 3.50, Manufacturer: SecureFix Direct
