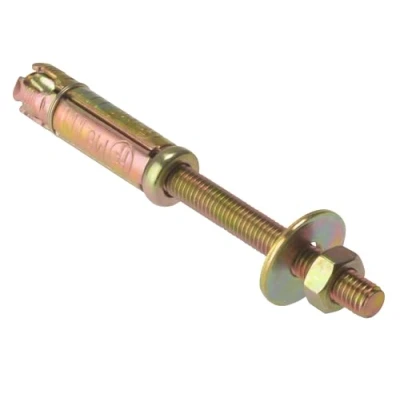

Masonry Anchor Bolt Projecting ZYP M10 x 70mm Bag 5

These Forgefix Masonry Anchor Projection Bolts are designed for heavy-duty fixing applications in concrete and masonry. Featuring a Zinc Yellow Passivated finish, these bolts offer enhanced durability and excellent resistance to corrosion, making them suitable for outdoor and industrial environments.

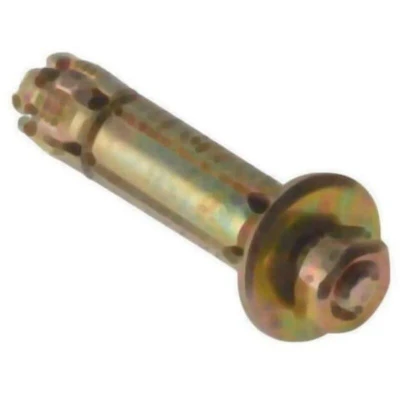

The construction of these masonry anchors is robust and reliable, ensuring they can handle a variety of demanding fixing tasks. Equipped with a four-way expansion shield, these projection bolts provide incredibly strong and secure anchorage, which is essential for ensuring that fixtures remain firmly in place. The specially manufactured retaining spring serves a vital role by ensuring the encapsulation of the wedge during the expansion process, further enhancing their security and reliability.

One of the practical advantages of using projection bolts is the ease of fixture removal or repositioning. Since the bolt remains within the shield after installation, users can conveniently adjust or remove fixtures without the need to impact the integrity of the anchor. This feature makes them particularly useful for applications that may require adjustments over time.

Applications

These anchor bolts are ideal for a range of applications, including:

- Securing reinforcement wall plates

- Supporting lighting fixtures

- Attaching guy ropes

- Fixing bracketry

When selecting the right size of masonry anchor, it’s crucial to consider the depth of the material being fixed. For example, the size designation "M610" indicates that 'M6' is the thread size of the bolt, while '10' signifies the maximum thickness of the material that the bolt can effectively secure.

Product Specifications

- Material Finish: Zinc Yellow Passivated

- Weight: 1.2786811196 pounds

- Manufacturer: Forgefix

- Anchor Type: Masonry Anchor Projection Bolt

- Size: M10 x 70mm (thread size: M10; maximum thickness: 10mm)

The Zinc Yellow Passivation process used in the manufacturing of these bolts not only enhances their aesthetic appeal through the addition of a yellow dye but also significantly increases their resistance to corrosion compared to traditional galvanized or zinc-plated options. This makes them a reliable choice for both indoor and outdoor projects where long-term durability is a priority.

Overall, Forgefix Masonry Anchor Projection Bolts are a dependable solution for any heavy-duty fixing needs, providing the strength and security required for demanding applications in masonry and concrete.
