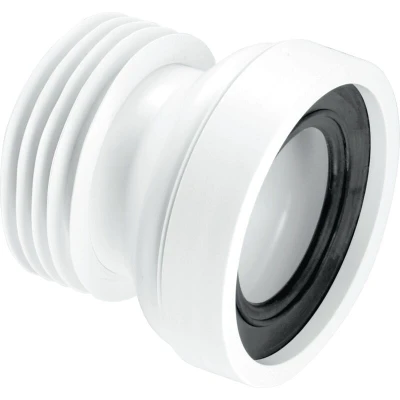

McAlpine CON1 Straight Rigid WC Connector, White

ManoMano

General description The McAlpine WC-CON1 is a straight rigid WC connector designed to connect a toilet pan to a soil pipe with a 4"/110mm outlet. It features an inlet diameter of 97-107mm, making it compatible with most standard toilet pans. Constructed from high-quality, durable materials, this connector is resistant to chemical corrosion, suitable for both domestic and commercial use. Technical specifications Outlet size: 4"/110mm Inlet diameter: 97-107mm Socket type: 3.5"/90mm 'O' Seal Socket Finned seal spigot for internal connections to cast iron, plastic, or clay 4"/110mm pipe Installation Ensure the connector is aligned correctly with the toilet pan and the soil pipe. Securely fasten the connector to both the toilet pan and the soil pipe to prevent leaks. Usage The McAlpine WC-CON1 is suitable for use with both horizontal and vertical soil pipes and can be used with most types of toilet pans. It is ideal for low-level connections and provides a secure, leak-free connection.

Amazon

Outlet fits 4"/110mm inside diameter of pvc-u and cast iron soil pipe 97-107Mm inlet suits all pan spigots Complies with BS 5627: 1984 and DIN 1389-2 Manufactured in polypropylene, Weight: 0.5070632026 Pounds, Manufacturer: McAlpine
