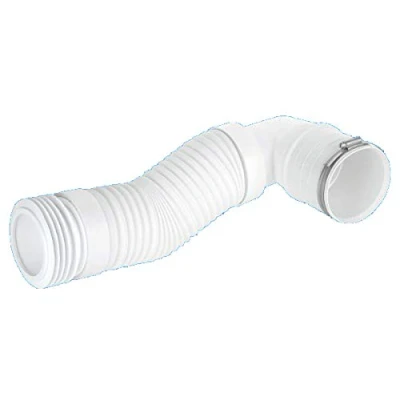

McAlpine Long 90 Degree Back to Wall Flexible WC Connector 90mm Outlet CON8F S BTW

General description The McAlpine WC-CON8F-S-BTW is a flexible WC connector designed for use with back to wall toilet pans. It features a 97-107mm inlet and a 90-degree bend for easy installation in a horizontal position. Made from high-quality, durable materials, this connector ensures a long-lasting and reliable connection. Its flexibility allows for easy adjustment and maneuverability during installation, making it ideal for tight spaces or limited access. This product is designed to provide a secure and leak-free connection between the toilet pan and the waste pipe. Technical specifications Inlet size: 97-107mm Bend angle: 90 degrees Compatible with 3.5"/90mm and 4"/110mm PVC-U and cast iron soil pipe diameters (internal) Soft synthetic rubber inlet connection Compatibility and accessories 97-107mm inlet suits all pan spigots Worm drive hose clip for secure connection to the WC pan spigot Other information Independent tests confirm no build-up of sediment in the flex

Back-to-wall with a 90-degree turn: Connects a back-to-wall pan to a soil pipe coming up through the floor or down from the wall Secure before it's hidden: Worm drive hose clip clamps the soft synthetic rubber inlet to the pan spigot before the pan goes back against the wall or furniture Long reach, 230 to 480 mm: Extends to bridge the gap and flexes to line up; ideal for installation in the horizontal position For 3.5 inch soil pipe: 90 mm finned outlet fits 3½ inch soil pipe; inlet suits all 97–107 mm pan spigots No sediment build-up: Independent tests show no build-up of sediment in the flex; certified to DIN 1389-02
