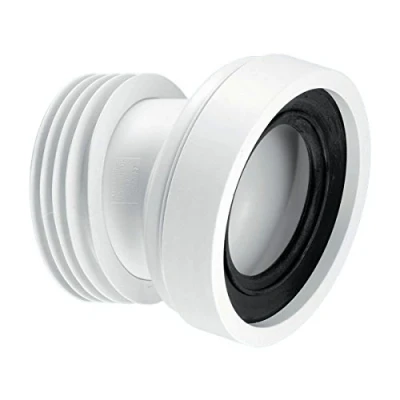

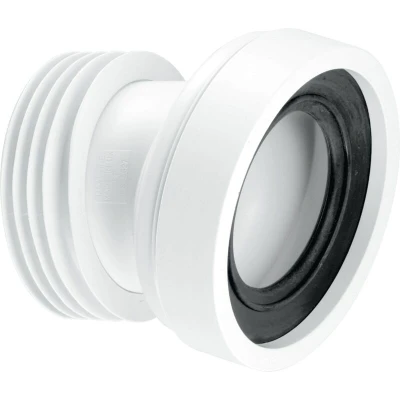

McAlpine WC CON7A 14 Degree Angle Rigid Connector, White

General description The McAlpine WC-CON7A is a rigid WC connector designed to connect a toilet pan with a horizontal outlet to a soil pipe with a 110mm diameter. It features a 14-degree angle, providing flexibility in connecting the toilet to the soil pipe, especially when the toilet pan is not directly aligned with the soil pipe. The inlet of the connector has a diameter of 97-107mm, allowing it to fit most standard toilet pans. This connector is specifically designed for use with rigid pipes and should not be used with flexible pipes. Technical specifications Connector angle: 14 degrees Soil pipe diameter: 110mm Inlet diameter: 97-107mm Material: Polypropylene Complies with: BS 5627:1984 and DIN 1389-2 Installation The connector should be installed according to the manufacturer's instructions and local building codes to ensure proper function and safety.
