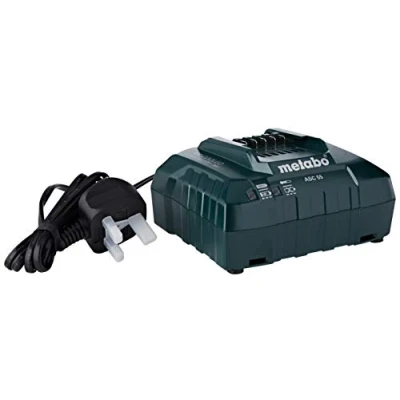

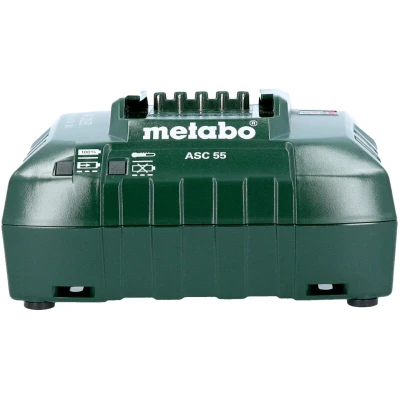

Metabo Chargers ASC 55, 12 36 V , Green

The Metabo ASC 55 Air Cooled Slide Charger is designed to charge all CAS slide-on battery packs across 12V to 36V, including Li-Power Compact, Li-Power Plus, Li-Power Extreme, and LiHD series. It employs AIR COOLED technology to cool the battery during charging, aiming to optimize temperature and reduce charging times. The charger is microcontroller-monitored to diagnose battery status and switches to a compensation charge mode to help conserve battery capacity. It is compatible with a wide range of brands on a single battery pack system, supporting CAS brand packs and facilitating longer tool life and shorter total charging times. The unit is intended for simple installation by plugging into a mains outlet (220–240 V) and is suitable for use with various slide-on packs within the 12–36V range.”

Features

• Air cooled charging technology shortens charging time
• Universal charger for 12–36V CAS slide-on packs
• Microcontroller monitoring for battery diagnostics
• Compensation charge mode to conserve capacity
• Supports Li-Power and LiHD slide-on packs
• One charger for multiple brands and Volt classes

Technical specifications

• Battery voltage: 12–36 V
• Mains voltage: 220–240 V, 50–60 Hz
• Max charging current: 3/4 A
• Output rating: 55 W
• Charging times: 18V 4.0 Ah → 80 min; 18V 8.0 Ah → 160 min
• Weight: 582 g
