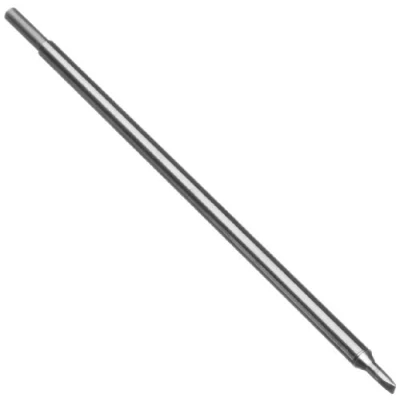

Metcal STTC 036 Soldering Cartridge, Chisel, ∅ 2.5 mm x 9.9 mm, 600 Series (330 ˚C)

STTC-, SMTC-Solder Tip Cartridges are the standard soldering tip range for Metcal MX-500, MX-5200, and MX-5200 Series soldering systems. All cartridges are available in three temperature ranges: 600 Series - nominally 330 ˚C, 700 Series - nominally 390 ˚C, and 800 Series - nominally 450 ˚C. The temperature/series is designated by the first digit following the dash in the part number (e.g. 600 Series is STTC/SMTC-6xxx, 700-series is STTC/SMTC-7xxx and 800-series is STTC/SMTC-8xxx). Metcal recommends the 700 Series for the majority of applications, the 600 Series for light-load or low-temperature applications, and the 800 Series for high-temperature and thermally demanding applications. They can be used with leaded and lead-free solder. Metcal SmartHeat Technology adjusts power levels automatically based on the demand of the application. Chisel, ∅ 2.5 mm x 9.9 mm, 600 Series (330 ˚C)
