Description

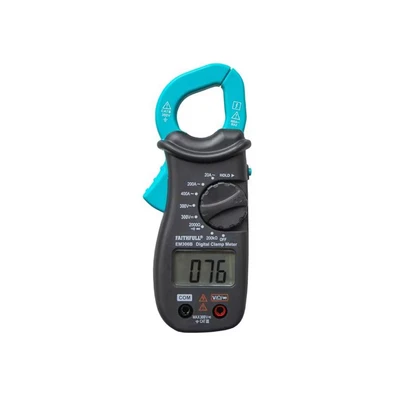

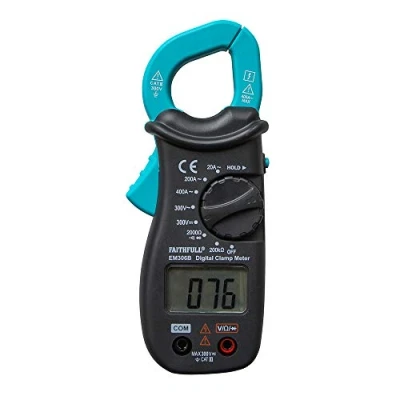

The Faithfull Mini Clamp Meter is a versatile and essential tool designed for a wide range of applications in laboratories, factories, warehouses, and homes. This compact electrical testing instrument combines the functionality of a standard digital multimeter with an innovative current sensor, making it a perfect choice for both professionals and DIY enthusiasts.
# Design and Display
Featuring a 3.1/2 digit LCD display, the Mini Clamp Meter boasts a user-friendly interface that clearly presents the measurements. One of its key features is the data hold function, which allows users to freeze the current reading on the screen for easy reference. The instrument is designed with portability in mind, weighing approximately 125 grams (excluding the battery) and measuring 151 x 65 x 34 mm. This lightweight and compact design makes it easy to carry and store.
# Measurement Capabilities
The Faithfull Mini Clamp Meter is equipped to measure a variety of electrical parameters, including:
- Voltage Measurement:
- DC Voltage: Up to 300V with an input impedance of 9MΩ.
- AC Voltage: Up to 300V with a frequency response range of 40 to 400 Hz.
- Current Measurement:
- AC Current: Three selectable ranges of 20A, 200A, or 400A, suitable for most applications and operating within a frequency range of 50 to 60 Hz.
- Resistance Measurement:
- Measures resistances ranging from 200Ω to 200kΩ.
- Diode Testing:
- Features a resolution of 1mV with an open circuit voltage of approximately 3V, allowing users to check the functionality of diodes.
- Continuity Testing:
- Offers continuity checks with a threshold of less than 30Ω, making it a practical tool for electrical troubleshooting.
# Clamp Specifications
The clamp itself has a maximum capacity of 25mm, allowing it to comfortably encircle wires of that thickness for current measurements. This feature is particularly useful in scenarios where direct contact is not feasible or practical.
# <a class='cat-link' href='https://bigshopper.co.uk/category/power/'>Power</a> Supply and Accessories
The Mini Clamp Meter is powered by three 3V CR2032 batteries, which are included with the instrument. Additionally, it comes supplied with test leads and a comprehensive user manual to facilitate straightforward operation and understanding of its features.
In summary, the Faithfull Mini Clamp Meter is a reliable and practical electrical test tool designed to meet the needs of a variety of electrical measurement tasks. Whether you're working in a professional setting or engaging in home improvement projects, this device offers accurate readings and essential functionalities to enhance your electrical diagnostics.
Description
The Faithfull Mini Clamp Meter is a versatile and essential tool designed for a wide range of applications in laboratories, factories, warehouses, and homes. This compact electrical testing instrument combines the functionality of a standard digital multimeter with an innovative current sensor, making it a perfect choice for both professionals and DIY enthusiasts.
# Design and Display
Featuring a 3.1/2 digit LCD display, the Mini Clamp Meter boasts a user-friendly interface that clearly presents the measurements. One of its key features is the data hold function, which allows users to freeze the current reading on the screen for easy reference. The instrument is designed with portability in mind, weighing approximately 125 grams (excluding the battery) and measuring 151 x 65 x 34 mm. This lightweight and compact design makes it easy to carry and store.
# Measurement Capabilities
The Faithfull Mini Clamp Meter is equipped to measure a variety of electrical parameters, including:
- Voltage Measurement:
- DC Voltage: Up to 300V with an input impedance of 9MΩ.
- AC Voltage: Up to 300V with a frequency response range of 40 to 400 Hz.
- Current Measurement:
- AC Current: Three selectable ranges of 20A, 200A, or 400A, suitable for most applications and operating within a frequency range of 50 to 60 Hz.
- Resistance Measurement:
- Measures resistances ranging from 200Ω to 200kΩ.
- Diode Testing:
- Features a resolution of 1mV with an open circuit voltage of approximately 3V, allowing users to check the functionality of diodes.
- Continuity Testing:
- Offers continuity checks with a threshold of less than 30Ω, making it a practical tool for electrical troubleshooting.
# Clamp Specifications
The clamp itself has a maximum capacity of 25mm, allowing it to comfortably encircle wires of that thickness for current measurements. This feature is particularly useful in scenarios where direct contact is not feasible or practical.
# <a class='cat-link' href='https://bigshopper.co.uk/category/power/'>Power</a> Supply and Accessories
The Mini Clamp Meter is powered by three 3V CR2032 batteries, which are included with the instrument. Additionally, it comes supplied with test leads and a comprehensive user manual to facilitate straightforward operation and understanding of its features.
In summary, the Faithfull Mini Clamp Meter is a reliable and practical electrical test tool designed to meet the needs of a variety of electrical measurement tasks. Whether you're working in a professional setting or engaging in home improvement projects, this device offers accurate readings and essential functionalities to enhance your electrical diagnostics.
