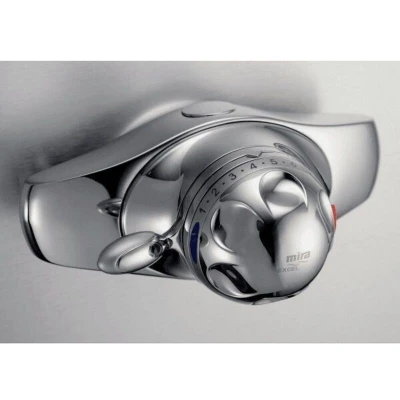

Mira Excel 1.1518.309 Exposed Thermostatic Shower Valve

The Mira Excel exposed thermostatic mixer valve (valve only) is designed for retrofit with any exposed Excel shower system. It features thermostatic temperature stability to maintain a safe, comfortable shower experience and includes a maximum temperature stop for added safety. The valve offers separate flow and temperature controls, a numbered temperature dial for set-and-forget adjustment, and Magni-flo technology to help deliver higher flow at low pressure. With ceramic flow control to resist limescale, it is compatible with all water systems and supports a minimum maintained pressure of 0.1 bar and a maximum maintained pressure of 5.0 bar, with a maximum static pressure of 10.0 bar. The unit comes in a chrome finish, includes an installation guide, and has a 5-year manufacturer’s guarantee. It is WRAS approved and intended for wall-mollow installation in exposed configurations.

Key features

• Thermostatic temperature stability

• Separate flow and temperature controls
• Maximum temperature stop for safety
• Numbered temperature dial for set-and-forget control
• Magni-flo technology for higher flow at low pressure
• Ceramic flow control resists limescale

Technical specifications

• Minimum maintained pressure: 0.1 bar
• Maximum maintained pressure: 5.0 bar
• Maximum static pressure: 10.0 bar
• Chrome finish

Automatic shutdown if water supply fails for complete safety.
