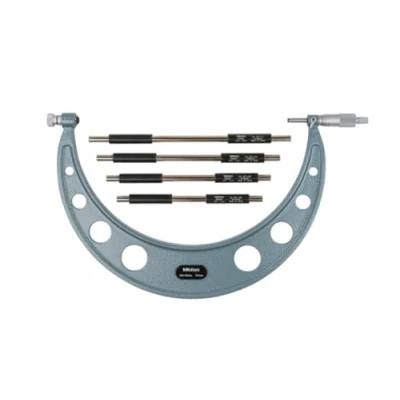

Mitutoyo 104 141A (104 141) 200 300mm Mic. comes with Anvil & Stds
Description
Zoro Tools
With one-piece carbide tip spindle and interchangeable hardened anvils with ground threads. Micro-lapped anvil and spindle faces, perforated frame with enamel finish. Supplied with standards, ratchet stop, positive locking clamp and supplied in a wooden or plastic (depending on size) storage case.
Accuracy:
Flatness: 0.6mm up to 300mm.
1.0mm up to 300 - 1000mm.
Parallelism: (2+L/100)mm (fraction rounded down).
Instrument error: (4+L/75)mm (fraction rounded up).
L = maximum measuring length.
Metric
Description
(2)
With one-piece carbide tip spindle and interchangeable hardened anvils with ground threads. Micro-lapped anvil and spindle faces, perforated frame with enamel finish. Supplied with standards, ratchet stop, positive locking clamp and supplied in a wooden or plastic (depending on size) storage case. Accuracy: Flatness: 0.6mm up to 300mm. 1.0mm up to 300 - 1000mm. Parallelism: (2+L/100)mm (fraction rounded down). Instrument error: (4+L/75)mm (fraction rounded up). L = maximum measuring length. Metric
AmazonVernier scale in metric units for taking precise outside diameter (OD) measurements Includes interchangeable anvils and setting rods for a diversified range of measurement Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements Baked enamel finish for protection and durability of frame High-grade tool steel construction for durability
Product specifications
