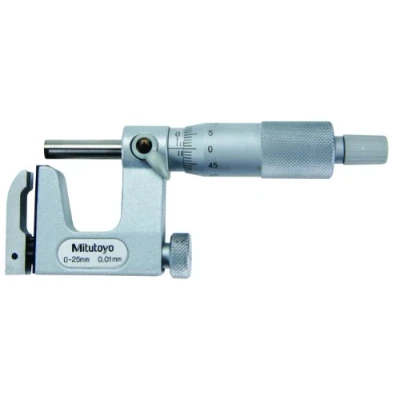

Mitutoyo 117 101 Interchangeable Anvil Micrometer 0 25mm

Zoro Tools

Applications include measuring wall thickness of cylinders and tubes, shoulder to edge distance, rivet head height etc., accomplished using the: standard flat Anvil, rod anvil, or optional V-anvil. Easily interchanged, with constant force ratchet and positive locking clamp. Quick and easy zero adjustment. Interchangeable anvils supplied: Flat anvil (201216). Rod anvil (201217) 3mm diameter for 0-25mm/0-1", (201379) 5mm diameter for 25-50mm/1-2". V-anvil: (201218) Available at extra cost. Accuracy: Flatness: 2mm (Anvil Face), 0.6mm (Spindle Face). Parallelism:3mm. Instrument Error: 4mm.

Amazon

It is designed to accept interchangeable anvils shaped for specific tasks. You can use it to measure the wall thickness of tubes, as well as openings and slots from edge to edge, and features in hard-to-reach locations. Accuracy: 4 µm / Graduation: 0,01 mm Make sure to buy an original Mitutoyo product. This instrument is supplied by Mitutoyo UK. Buying from us means buying original Mitutoyo instruments directly from the JPese premium manufacturer with the outstanding quality, durability and accuracy that you legitimately expect.
