Mitutoyo 128 105 Fixed Rod Depth Micrometre, 0" 1"

ManoMano

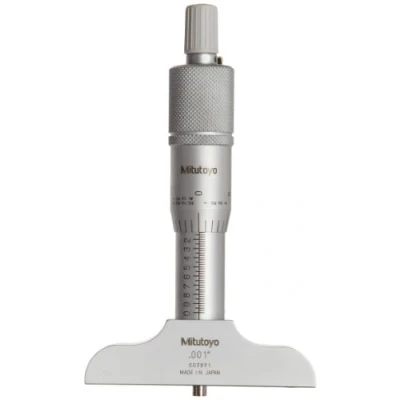

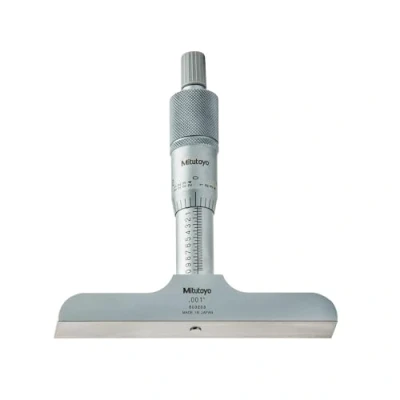

Mitutoyo: 128-105 0-1" Depth Micrometer Fixed rod type with bases hardened, precision ground and micro-lapped. All other surfaces are satin chrome finished. The screw is also precision ground and lapped. Ratchet stop. Spanner wrench with each micrometer. Accuracy: Instrument error: 3m. Flatness of reference face (bottom face of base): 1.3m for 60mm/2.5 base. 2m for 100mm/4 base. MPN: 128-105 EAN: 4946368016283 128-105 0-1" Depth Micrometer Attributes: Additional Features: Fixed Rod Model for Low-range Measurements Hardened and Ground with a Micro-lapped Reference Surface Two Base Size Models Available Base Size: 2.5in Display Type: Analogue Graduation: 0.001in MFR Part No.: 128-105 Measurement Range: 0 - 1in Micrometer Head Feed: +/-0.003mm Number of Rods: 0 System of Measurement: Imperial Weight: 200g

Zoro Tools

Fixed rod type with bases hardened, precision ground and micro-lapped. All other surfaces are satin chrome finished. The screw is also precision ground and lapped. Ratchet stop. Spanner wrench with each micrometer. Accuracy: Instrument error: 3m. Flatness of reference face (bottom face of base): 1.3m for 60mm/2.5" base. 2m for 100mm/4" base.

Amazon

Measurement range of 0 to 1", and resolution of 0.001" Vernier scale for precise measurements in fine units Includes measuring 0.157" diameter rod Ratchet stop and measuring rod clamp for precise measurements Satin chrome finish on the thimble for readability
