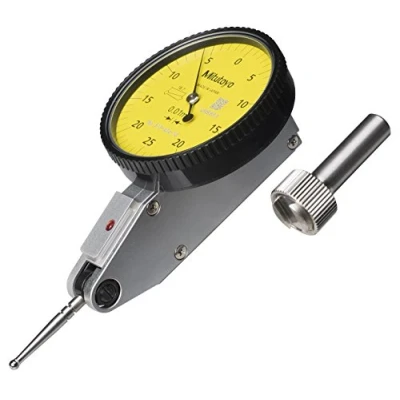

Mitutoyo 513 424 10E Dial Test Indicator Horizontal Type 8mm Stem

ManoMano

Mitutoyo: Dial Test Indicator 513-424-10E 40mm Diameter Face Large dial face for easy reading with the installed 2mm (.08) diameter point carbide tipped. These indicators are ruggedly housed within a satin chrome finished case. Bezel and dial are adjustable for easy zero setting with fully jewelled movements. Automatic reversible contact point is adjustable through 240. The precision miniature pivot bearings give a frictionless movement of the contact point. One piece bezel of crystal design ensures resistance to water and dust. MPN: 513-424-10E EAN: 4946368675565 Dial Test Indicator 513-424-10E Attributes: Accuracy: 5mm Contents: Clamping Shaft ø3/8" Dial Diameter: 40mm Graduations: 0.01mm MFR Part No.: 513-424-10E Measuring Range: 0.5 -mm Reading: 0-25-0 Resistance Features: Anti-magnetic Scratch-resistant Water-resistant Resolution: 0.01mm Travel: 0.5mm Type: Lever Indicator Weight: 40g

Amazon

Drastically enhanced durability, sensitivity and visibility Glare-free flat crystal face allows easy reading of graduations. Accuracy: 5 µm/ graduation: 0, 01 mm/ calibrated: false/ dial reading: 0-25-0 O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face Multi-layer coatings on the crystal Make sure to buy an original Mitutoyo product. This instrument is supplied by Mitutoyo UK. Buying from us means buying original Mitutoyo instruments directly from the jpese Premium manufacturer with the outstanding quality, durability and accuracy that you legitimately expect

Zoro Tools

40mm Diameter Face Large dial face for easy reading with the installed 2mm (.08") diameter point carbide tipped. These indicators are ruggedly housed within a satin chrome finished case. Bezel and dial are adjustable for easy zero setting with fully jewelled movements. Automatic reversible contact point is adjustable through 240. The precision miniature pivot bearings give a frictionless movement of the contact point. One piece bezel of crystal design ensures resistance to water and dust.
