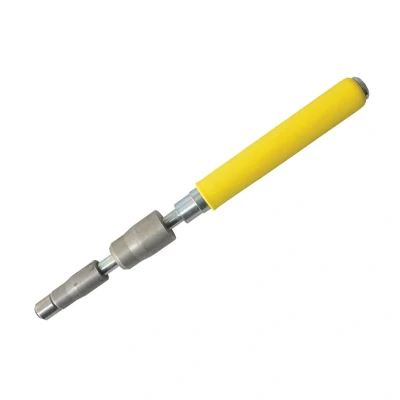

Monument Combination Table X 15mm & 22mm Copper Pipe Jointer

ManoMano

General description This Monument 138R Copper Pipe Jointer is designed for joining two copper pipes of the same diameter without fittings. It is suitable for pipes with diameters of 15mm and 22mm and pipe thicknesses of 0.7mm and 0.9mm. The tool features a loose former that allows for easy removal after use, leaving a capillary joint that can be finished with soft or hard soldering for a secure connection. Technical specifications Pipe diameters: 15mm and 22mm Pipe thickness: 0.7mm and 0.9mm Available sizes: 15mm, 22mm, 28mm, and combinations of 15 & 22mm Compatibility and accessories Compatible with copper pipes of specified diameters and thicknesses Suitable for use with soft or hard soldering techniques Installation Insert the pipes into the tool's sockets Use the forming tool to join the pipes without fittings Remove the tool after forming the joint; the capillary joint can then be soldered for added strength if desired Usage Ideal for plumbing and home improvement projects

Amazon

Monument Socket Forming Tools (Copper Pipe Jointers) Are Ideal For Joining 2 Pieces Of Copper Pipe Of Equal Diameter Together Without Using Fittings The Loose Former Allows Easier Withdrawal Of Tool After Use. The Resulting Capillary Joint That Is Left Can Be Soft Or Hard Soldered To Finish The Joint. To Suit Pipes, 15mm x 0.7mm, And 22mm x 0.9mm, Weight: 0.42 pounds, Manufacturer: Monument
