Moore & Wright 1966M50 (0.01mm) Traditional External Micrometer Carbide Anvils 25 50mm

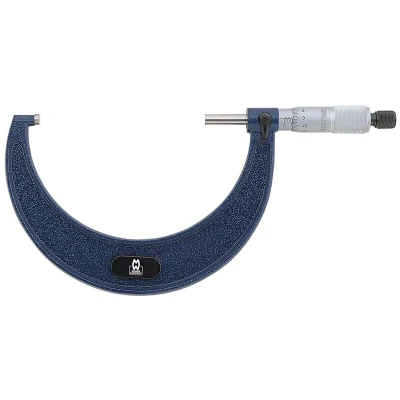

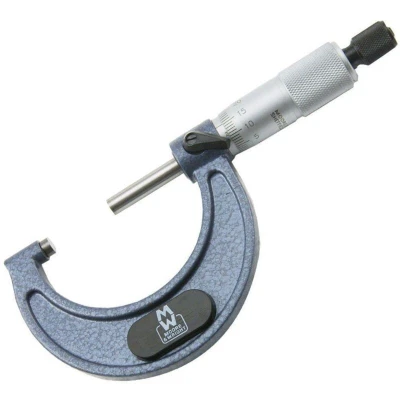

General description The Moore & Wright 1966M/50 Traditional External Micrometer is designed for precise measurements of external dimensions. It features a durable blue textured frame with tungsten carbide measuring faces for longevity and accuracy. The micrometer includes a 'speeder' type ratchet, locking lever, and adjusting key for ease of use, making it suitable for measuring objects within a range of 25 to 50mm with high precision. Technical specifications Measuring range: 25-50mm Graduation: 0.01mm Measuring face flatness: 0.001mm Parallelism: 0.003mm Accuracy: 0.003mm Resolution: 0.01mm Spindle diameter: 6.5mm Compatibility and accessories Manufactured to BS870, DIN 863/1, ISO 361 standards Supplied in a protective case Installation Ensure the micrometer is clean before use Adjust the spindle using the provided key for calibration if necessary Use the ratchet to apply consistent pressure during measurements Usage Place the object between the measuring faces Turn the thimble to
