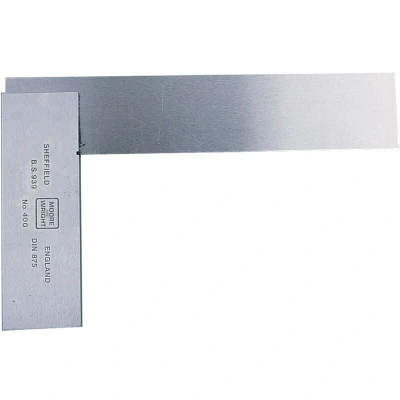

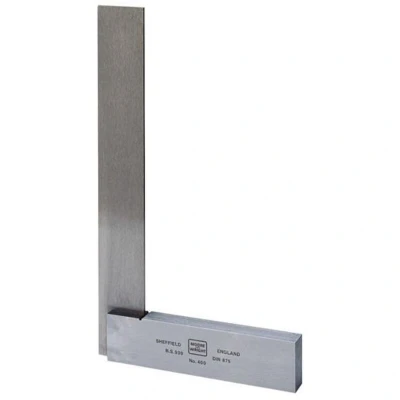

Moore & Wright 4004 Engineer's Square Grade B 100mm (4in)

General description The Moore & Wright Engineer's Square Grade B 100mm (4in) is designed for precision in engineering, woodworking, and home improvement projects. It features a hardened and tempered steel blade with precision ground surfaces, ensuring accurate measurements. The square is constructed with blind rivets for enhanced durability and has a satin chrome finish to resist corrosion. Technical specifications Blade Size: 100mm (4 inches) Blade Dimensions: 130.2 x 25.4mm Stock Dimensions: 76.2 x 25.4mm Inner Working Dimensions: 57.0 x 104.8mm Material: Steel Finish: Satin chrome Standards met: BS 939 / Grade B Compatibility and accessories Designed for use with various engineering and woodworking tools requiring precise square measurements Installation No installation required; simply use the square for measuring and marking Usage Use to check right angles and for layout work in engineering, woodworking, and home improvement projects Ensure the blade and stock are clean and free

The Moore & Wright Engineer's Squares have a precision ground blade and stock and a blind riveted construction. The blade has been hardened and tempered for longer life. Conforms to B5939/Grade B.1 x Moore & Wright 4004 Engineer's Square Grade B 100mm (4in) in Retail Packaging. Specifications: Blade Size: 130.2 x 25.4mm.Stock Size: 76.2 x 25.4mm.Inner Working: 57.0 x 104.8mm.PTDMAW4004R
