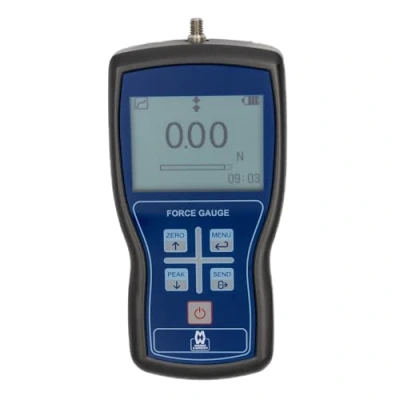

Moore & Wright Digital Push Pull Force Gauge Dynamometer High Precision Advanced Microprocessor Thrust Meter Measuring Instruments of 5 Measurement Units N,gf,kgf,ozf and lbf (500N)

Zoro Tools

This compact and user-friendly handheld digital compression force gauge from Moore & Wright features an intuitive and clear digital display, as well as an advanced microprocessor ensuring high accuracy compressive and tensile force testing. Featuring a compact durable metal housing with threaded holes for mounting to a frame. Models cover a variety of different ranges and resolutions. Each is supplied with a selection of measuring heads to contact the object under test, including a hook and extension shaft. User friendly touch keypad & full-format 160x128 dot matrix LCD (2.8 inch) backlit display with display update rate of 10 times per secondAccuracy = +/- 0.2% F.S. Overload capacity = 150% of F.S. (LCD blinks beyond 110%) Compact and durable metal housingSelectable units of N, gf, kgf, ozf, and lbfSupplied with a selection of measuring headsEasily mountable to an external frameAutomatic display inversion depending on orientationMechanical overload protectionIncludes USB charging cableRS232 communication and alarm output portSuitable in operating environments of -10 to 40C and relative humidity of 20-80%1000 data memoryIncludes 3.6VDC 800MAH Ni-MH rechargable batteries with approx. 14 hours per chargeSupplied in a hard plastic case to house all accessoriesDimensions (mm) = 145 x 75 x 35 (digital gauge) , 285 x 120 x 60 (in case) Weight in grams = 700 (gauge only) , 1200 (in case)

Amazon

The digital push pull force gauge uses advanced sensor technology to precisely measure small push, pull, insertion/extraction forces. This digital force gauge features high resolution and minimal error, meeting the needs of precision experiments and production processes User friendly touch keypad & full-format 160x128 dot matrix LCD (2.8 inch) backlit display with display update rate of 10 times per second. Overload capacity = 150% of F.S. (LCD blinks beyond 110%). Accuracy = +/- 0.2% F.S. Selectable units of N (Newton), G (Gram), kg (kilogram), Oz (Ounce), and Lb (pound).The push pull force gauge includes an automatic shutdown function. By setting upper and lower limits, the device establishes a warning range. If test results exceed the set limits, an alarm will sound. It also filters data within the minimum set range and offers three measurement modes: Real-time, Peak, and First Peak. Suitable for measuring push, pull, insertion/extraction forces in various products, such as electronic components, connectors, plastic parts, and automotive parts, for quality control and R&D testing.
