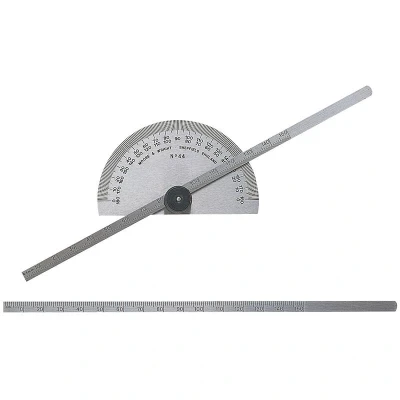

Moore & Wright MAW44 Depth Gauges

ManoMano

General description This is a protractor type depth gauge designed for precise measurement of depths and angles. It features a full-range rule adjustment with locknut fixation, allowing for accurate and stable readings. Suitable for various DIY and home improvement tasks requiring accurate depth and angle measurements. Technical specifications Size of Base: 79mm (3.11 inches) Width: 5.5mm (0.22 inches) Thickness: 1.0mm (0.04 inches) Length of Blade: 195mm (7.68 inches) Scale graduations: Front face 1/32nd, rear face 1.0mm Protractor plate graduated from 0° to 180° and back to 0° Scale resolution: 1/2° Compatibility and accessories Includes: Protractor Part number: MAW44 Installation Adjust the rule to the desired measurement and fix it using the locknut for stability during use. Position the protractor on the workpiece to measure angles or depths accurately. Usage Use the full-range rule to measure depths or distances. Align the protractor plate to measure angles from 0° to 180°. Fix

Amazon

Protractor Type Depth Gauge Metric/Imperial Protractor Type Depth Gauge Metric/Imperial Protractor Type Depth Gauge Metric/Imperial
