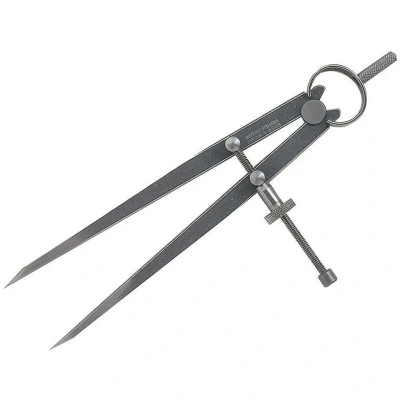

Moore & Wright MAW506R Spring Dividers

This is a 150mm (6-inch) spring divider manufactured from polished tool steel with hardened points for durability and precision. It features a centrally mounted adjustment screw and a bow spring to ensure uniform tension across the working range. Designed for accurate marking and measuring in various DIY and home improvement tasks, it complies with BS3123 standards and is suitable for professional and hobbyist use. The nominal size is the distance between the center of the nut and the working ends of the legs, and the tool is ready to use out of the box for mark-and-measure tasks.

Features

• 150mm (6”) nominal size between center of nut and ends
• Polished tool steel construction
• Hardened points over 550 Hv
• Spring-loaded bow spring for uniform tension
• Centrally mounted adjustment screw
• BS3123 compliant

Technical specifications

• Measurement range: 0–6 inches (0–150 mm)
• Material: Polished tool steel
• Points: Hardened to over 550 Hv
• Design: Spring-loaded with adjustment screw
• Nominal size: Distance between center of nut and working ends
