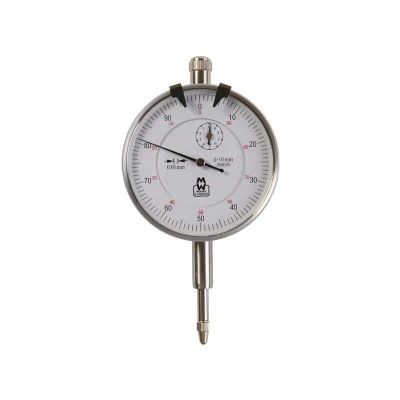

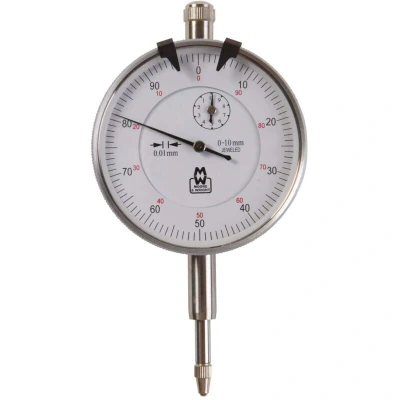

Moore & Wright MW400 06 58mm Dial Indicator 0 10mm/0.01mm MAW40006

General description This precision dial indicator features a satin-chromed body and tungsten carbide measuring contact, designed for measuring small distances with high accuracy. It includes a double dial for measurements in millimeters and is built with a shockproof design to withstand accidental knocks. A micrometer ball attachment is available for measuring round or irregular surfaces, ensuring reliable contact with the object being measured. Technical specifications Range: 0-10mm Resolution: 0.01mm Dial Diameter: 58mm Stem Diameter: 8mm Type: Ear Back Compatibility and accessories Suitable for use with standard external micrometers Includes a ball attachment for measuring round or irregular surfaces Ball attachment is compatible with Moore & Wright 878 series micrometers Installation Attach the dial indicator to a compatible stand or fixture as needed Fit the ball attachment onto the anvil or spindle of your external micrometer Ensure the ball is securely fitted before measurement

The Moore & Wright 400 Series Dial Indicator has a satin-chromed body with a tungsten carbide measuring contact and a double dial indicator for measuring mm stroke. The design is shockproof in case of accidental knocks. The scale can be adjusted with the stop screw. The 400 Series Dial Indicator is manufactured to DIN 878 standards. Supplied foam packaging. Range: 0-10mm.Resolution: 0.01mm.Dial Diameter: 58mm.Stem diameter: 8mmType: Ear Back.PTDMAW40006
