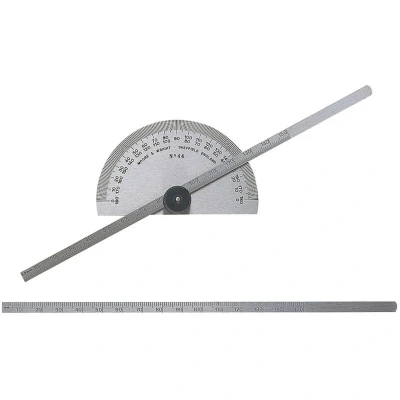

Moore & Wright Protractor Type Depth Gauge Metric 0 150mm MAW44M

General description This is a precision depth gauge and protractor tool designed for measuring angles and depths accurately. It features a full-range adjustable rule with graduated markings on both sides, allowing for precise readings and locking in measurements. The tool is suitable for various DIY and home improvement tasks requiring accurate angle and depth measurements. Technical specifications Size of Base: 79mm Width: 5.5mm Thickness: 1.0mm Length of Blade: 195mm Metric Scale Graduations: Front Face: 0.5mm and 1.0mm, Rear Face: 1.0mm Protractor range: 0° to 180° and back to 0° Scale Resolution: 1/2° Compatibility and accessories Designed for use with standard measuring and marking tools in DIY and home improvement projects Compatible with other measuring instruments that require angle and depth measurements Installation No installation required; simply place the tool on the workpiece for measurement Ensure the rule is properly locked in position for accurate readings Usage Use

The Moore & Wright Protractor Type Depth Gauge has a full range rule adjustment and the readings can be fixed by means of a locknut. Rules are graduated on both sides. Protractor plate is graduated 0º - 180º - 0º.Scale Resolution: 1/2°.The Moore & Wright 44M Protractor Type Depth Gauge Metric/Imperial has the following specifications: Size of Base: 79mm.Width: 5.5mm.Thickness: 1.0mm.Length of Blade: 195mm. Metric Scale Graduations : Front Face: 0.5mm and 1.0mm Rear Face: 1.0mm.PTDMAW44M
