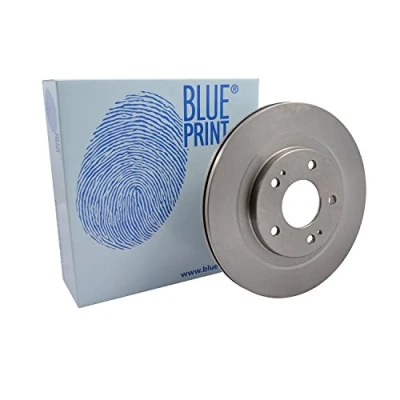

MR334996 Brake disc BLUE PRINT ADC44377 Front Axle 286mm 22mm 5 Hole 114mm internally vented Coated MITSUBISHI: Shogun Pinin

Amazon

Original Blue Print spare part - Right First Time Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle. All restrictions must be observed! Brake Disc Thickness: 22,1 mm; No. of Wheel Bolt/Stud Holes: 5; No. of Fixing Holes: 2; Height or Thickness: 38,6 mm; Outer Diameter: 286 mm; Pitch Circle Diameter: 114,3 mm; Surface: spray painted; Brake Disc Type: internally ventilated; Fitting Side: front axle; Minimum Thickness of Brake Disc: 20,4 mm; Weight: 6,120 kg; Centering Diameter: 69 mm OE numbers (for comparison purposes only): Mitsubishi MR334996; OEM numbers (for comparison purposes only): Bosch 0 986 479 470, TRW DF7276, Delphi BG3814, ATE 24.0122-0230.1, Textar 92148500, Nipparts J3305055, Jakoparts J3305055 among others suitable for: Mitsubishi: Montero 4x4, Pajero 4x4, Pajero I.O 4x4, Shogun 4x4

AUTODOC

ADC44377; Brake disc; BLUE PRINT; Front Axle 286mm 22,1mm 5-Hole 114mm internally vented; for MITSUBISHI; MR334996
