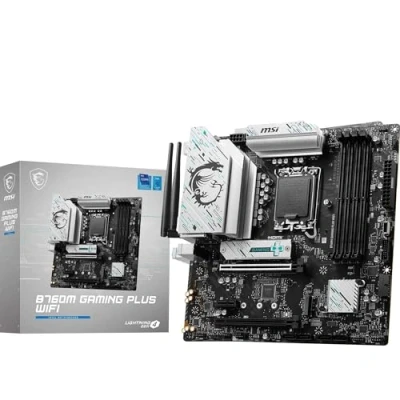

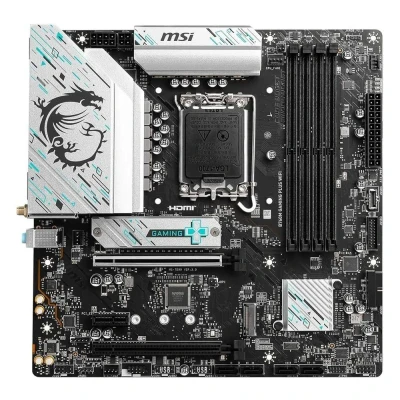

MSI B760M GAMING PLUS WIFI Motherboard, mATX Supports Intel 14th, 13th & 12th Gen Core Processors, LGA 1700 DDR5 Memory Boost 6800+MHz/OC, 1x PCIe 4.0 x16, 2 x M.2 Gen4, 2.5G LAN, Wi Fi 6E

Cazaar

B760M GAMING PLUS WIFIWin the CompetitionThe B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, a convenient Wi-Fi solution and DDR5 memory support for gamers who want it all. Supports Intel Core 14th, 13th & 12th Gen Processors (LGA 1700) 12 Duet Rail Power System with P-PAK 4 x DDR5 DIMMs with Memory Boost: Dual Channel (192GB Max. / 6800MHz OC) 1 x PCI-e 4.0 x16 slot Lightning Gen4 M.2 & M.2 Shield Frozr USB 3.2 Gen 2 Type-A (10Gbps) 7.1 HD Audio with Audio Boost Realtek 2.5G LAN, Intel Wi-Fi 6E & Bluetooth 5.3 Features Supports Intel Core 14th, 13th & 12th Gen ProcessorsThe B760M GAMING PLUS WIFI motherboard supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors.Form Factor: Micro-ATXSocket Type: LGA 1700Chipset: Intel B760 12+1 Duet Rail Power System with P-PAKWith its 8+4 pin power connectors and exclusive Core Boost technology, the B760M GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding work settings:1. Digital PWM IC2. 12-Phase Duet Rail CPU Power (P-PAK)3. 1-Phase GT Power4. 1-Phase AUX Power Integrated Cooling FeaturesVRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header. 4 x DDR5 Dual Channel (6800+ MHz OC)*Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 6800+ MHz, supports Intel XMP. 1 x Fortified PCIe 4.0 x16 SlotMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 2 x PCIe 4.0/3.0 x16 slot* (primary slot with Steel Armor) 1 x PCIe 3.0 x1 slot *Supports x16/x4 Gen4 M.2 ConnectorsThe B760M GAMING PLUS WIFI motherboard features MSI's Gen4 M.2 slots:2 x Gen4 x4 64Gbps slots**1 with M.2 Shield Frozr M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. Wi-Fi 6E & Bluetooth 5.32.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2 Type-A: Connect to devices and transfer files at high bandwidth rates: 10Gbps. Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. Data Sheet B760M GAMING PLUS WIFI Data Sheet

Amazon

14TH, 13TH & 12TH GEN CORE - The B760M GAMING PLUS WIFI (mATX) employs a 12 Duet Rail Power System (75A, P-PAK) VRM for the Intel B760 chipset (LGA 1700, 14th, 13th & 12th Gen) with MSI Core Boost technology for improved stability & performance INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer server-grade PCB with 2 oz. thickened copper DDR5 MEMORY, PCIe 4.0 x16 SLOT - 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6800+ MHz); 1 x PCIe 4.0 x16 slots (128GB/s) supports graphics cards, PCIe x16 slot includes Steel Armor Dual M.2 CONNECTORS - Storage options include 2 x M.2 Gen4 x4 64Gbps slots (one with M.2 Shield Frozr) to prevent thermal throttling during hyper-fast SSD access WI-FI 6E CONNECTIVITY - Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
