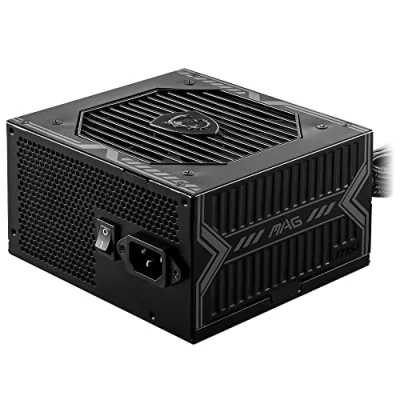

MSI MAG A650BN Power Supply Unit, UK Plug 650W, 80 Plus Bronze Certified, ATX PSU, 12V Single Rail, DC to Circuit, 120mm Fan 5 Year Warranty

The MSI MAG A650BN power supply is engineered to provide a dependable, efficient, and secure foundation for your PC system. With an impressive 80 PLUS Bronze certification, this PSU is not only designed for optimal energy efficiency but also ensures that your components operate coolly and effectively. The A650BN can achieve an efficiency of up to 86%, which significantly reduces internal thermal loading, resulting in lower power consumption and enhanced system performance.

Design and Features

At the heart of the MSI MAG A650BN lies a robust DC-to-DC circuit design that minimizes output voltage instability, ensuring stable power delivery to all connected components. This feature is particularly beneficial for demanding applications, allowing your system to handle heavy loads without compromising performance. The power supply is equipped with a 12V single-rail design, which further enhances output stability and provides reliable current distribution.

The power supply comes with a 120mm low-noise cooling fan featuring a sleeve bearing design. This fan operates quietly while efficiently dissipating heat generated during operation. This focus on low-noise performance makes the A650BN an excellent choice for both gaming rigs and quieter workstation builds.

Comprehensive Protection

Safety and reliability are paramount in the MSI MAG A650BN. This power supply incorporates extensive protection mechanisms, including over-current protection (OCP), over-voltage protection (OVP), over-power protection (OPP), over-temperature protection (OTP), and short-circuit protection (SCP). These features ensure that your system is safeguarded against potential electrical hazards, giving you peace of mind during intense gaming sessions or resource-heavy tasks.

Extensive Connectivity

The MSI MAG A650BN is designed with practicality in mind, featuring a non-modular design that includes a wide array of cables for connectivity. Users will find multiple connectors for hard drives, SSDs, graphics cards, and other components, accommodating the needs of various build configurations seamlessly.

Specifications

- Efficiency Rating: 80 PLUS Bronze (up to 86%)

- Modular: No

- Fan Size: 120mm

- Fan Bearing: Sleeve Bearing

- Dimensions (LxWxH): 140 x 150 x 86 mm

- PFC Type: Active PFC

- Input Voltage Range: 100~240 VAC

- Power Watt: 650W

- Input Frequency Range: 50~60 Hz

- Protection: OCP / OVP / OPP / OTP / SCP

- Connectors: 1x ATX (24 PIN), 1x EPS (4+4 PIN), 2x PCI-E (6+2 PIN), 5x SATA (15 PIN), 2x MOLEX (4 PIN), 1x FDD (4 PIN)

With the MSI MAG A650BN power supply, expect a balanced blend of performance, efficiency, and reliability that meets the demands of modern computing, whether for gaming or other intensive applications.
