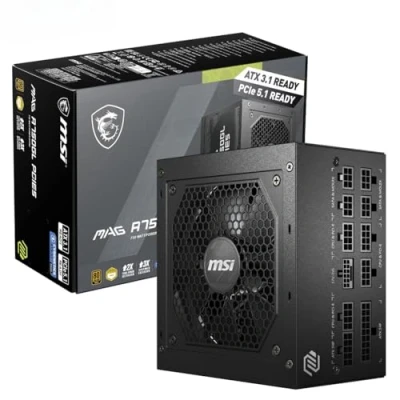

MSI MAG A750GL PCIE5 Power Supply Unit, 750W, 80 Plus Gold, Fully Modular, ATX 3.0, PCIe 5.0 GPU Support, Black Flat Cables, 7 Year Warranty

The MAG A750GL PCIe 5.0 Power Supply Unit (PSU) is designed to meet the needs of modern gaming setups with cutting-edge technology and robust performance. With an 80 PLUS Gold certification, this PSU achieves up to 90% efficiency, reducing energy consumption and operational heat. This makes it an ideal choice for high-performance components such as high-end CPUs and GPUs.

Key Features

- ATX 3.0 Compatibility: This power supply is ATX 3.0 compatible, enabling it to handle double the total power excursions and three times the GPU power excursions. This means it can adapt to the high demands of next-generation gaming hardware without compromise.

- Fully Modular Design: The MAG A750GL features a fully modular cable design, allowing users to connect only the necessary cables. This significantly reduces cable clutter, improves airflow within the case, and simplifies the overall system setup. The included premium copper alloy connectors ensure a secure connection while enhancing durability.

- Native PCIe 5.0 GPU Support: With a native 16-pin PCIe 5.0 connector, this PSU can deliver up to 450W of power to the latest PCIe 5.0 graphics cards, fully supporting both NVIDIA and AMD products. The design includes distinctive yellow highlights on the connector to help identify loose connections, ensuring a stable and efficient power supply.

- Compact Size: The extra-compact dimensions of 140mm in length and 150mm in width make this PSU suitable for a wide range of PC cases. This allows for more effective cable management and improved airflow, crucial for maintaining optimal performance.

- Superior Cooling: Equipped with a 120mm fluid dynamic bearing (FDB) fan, the MAG A750GL offers exceptional cooling capabilities. This design balances noise and temperature efficiently, allowing for a quiet operation that won’t disrupt your gaming experience.

- Reliable Performance & Protection: Featuring a full-bridge LLC topology and DC-to-DC module with active PFC design, this power supply ensures stable output for high-performance components. It also comes with multiple protection standards including Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP), providing peace of mind during intense gaming sessions.

Specifications

- Efficiency Rating: 80 PLUS Gold (up to 90%)

- Modular: Fully Modular

- Fan Size: 120mm

- Fan Bearing: Fluid Dynamic Bearing

- Dimensions (L x W x H): 140mm x 150mm x 86mm

- PFC Type: Active PFC

- Input Voltage Range: 100~240 VAC

- Power Output: 750W

- Input Frequency Range: 47-63Hz

The MAG A750GL is engineered to support the most demanding systems while ensuring enhanced energy efficiency and performance, making it a top choice for gamers and PC enthusiasts alike.
