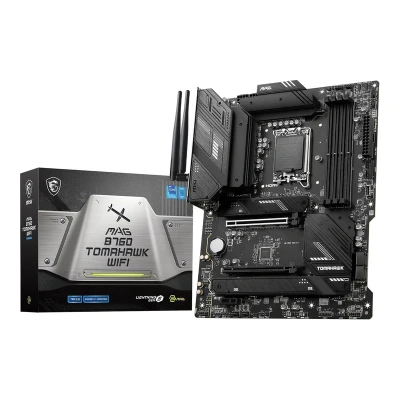

MSI MAG B760 TOMAHAWK WIFI Motherboard - ATX - LGA 1700 - 7D96-003R

The MAG B760 TOMAHAWK WIFI is an ATX motherboard built for stability and high performance with the Intel B760 chipset. Designed for 12th, 13th, and 14th Gen Intel Core processors on the LGA 1700 socket, it supports DDR5 memory, PCIe 5.0 expansion, multiple M.2 storage options, and robust networking. It integrates heat management features, reinforced construction, and comprehensive I/O to accommodate demanding gaming and professional workloads while maintaining reliable operation across extended use.

Features

• Supports 12th–14th Gen Intel Core on LGA1700
• DDR5 up to 7000+ MHz, 4 DIMMs, 128GB
• PCIe 5.0 x16 primary with Steel Armor, PCIe 3.0 x16 secondary
• Three M.2 Gen4 x4 slots with Shield Frozr
• Intel Wi-Fi 6E, Bluetooth 5.3, and 2.5 GbE Ethernet
• Rear I/O includes USB 3.2 Gen2x2 Type-C, HDMI 2.1, DisplayPort 1.4

Technical specifications

• Form factor: ATX; Socket: LGA1700; Chipset: B760
• Memory: 4x DDR5; up to 7000+ MHz; 128GB total
• Storage: 3x M.2 Gen4 x4; 4x SATA III
• Networking: Intel Wi‑Fi 6E, Bluetooth 5.3, 2.5 GbE Ethernet
• Audio: Realtek ALC897, 7.1 channel HD audio
• Power and cooling: 2 oz copper PCB, integrated VRM cooling with high-efficiency pads
