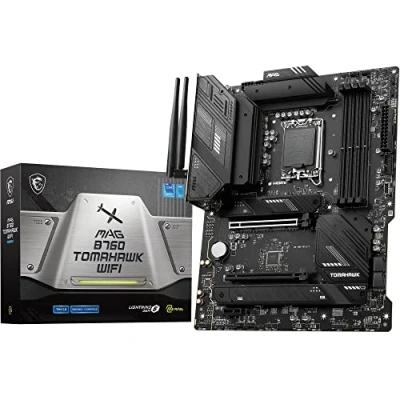

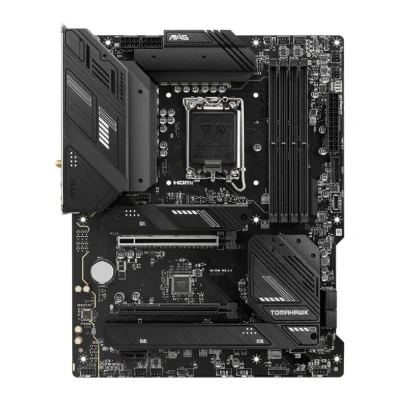

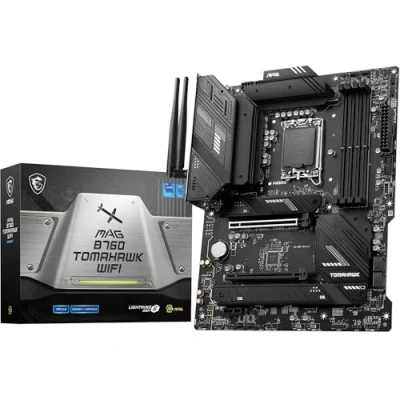

MSI MAG B760 TOMAHAWK WIFI Motherboard, ATX Supports Intel 12th & 13th Gen Core Processors, LGA 1700 75A DrMOS VRM, DDR5 Memory Boost 7000+MHz/OC, PCIe 5.0 x16, M.2 Gen4, Wi Fi 6E

Cazaar

MAG B760 TOMAHAWK WIFIUnite as OneThe MAG B760 TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest Intel B760 chipset that balances value with premium hardware. Supports Intel Core 12th & 13th Gen Processors (LGA 1700) 12 Duet Rail Power System with 75A DrMOS 4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 7000MHz OC) 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 slot Lightning Gen4 M.2 & M.2 Shield Frozr Lightning Gen4 M.2 slots with Shield Frozr 7.1 HD Audio with Audio Boost Realtek 2.5G LAN, Intel Wi-Fi 6E & Bluetooth 5.3 Features Supports Intel Core 12th & 13th Gen ProcessorsThe MAG B760 TOMAHAWK WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.Form Factor: ATXSocket Type: LGA 1700Chipset: Intel B760 12+1 Duet Rail Power System with 75A DrMOSWith its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B760 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:- Digital PWM IC- 12-Phase Duet Rail CPU Power (DrMOS / 75A)- 1-Phase GT Power- 1-Phase AUX Power Integrated Cooling FeaturesVRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.PCB Cooling: Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.SSD Cooling: M.2 Shield Frozr prevents thermal throttling.System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header. 4 x DDR5 Dual Channel (7000 MHz OC)*Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7000+ MHz, supports Intel XMP. Fortified PCI-e 5.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**)1 x PCI-e 3.0 x16 slot**Supports x16/x4**MSI Surface Mount Technology (SMT) solder welding improves signal clarity. Gen4 M.2 ConnectorsThe MAG B760 TOMAHAWK WIFI motherboard features MSI's Gen4 M.2 slots:3 x Gen4 x4 64Gbps slots**3 with M.2 Shield Frozr M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. Wi-Fi 6E & Bluetooth 5.32.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology. USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output. Data Sheet MAG B760 TOMAHAWK WIFI - Data Sheet

Amazon

12TH & 13TH GEN CORE, HIGH PERFORMANCE - The MAG B760 TOMAHAWK WIFI (ATX) employs a 12 Duet Rail Power System (75A, DrMOS) VRM for the Intel B760 chipset (LGA 1700, 12th & 13th Gen Core) with Core Boost for enhanced CPU performance INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer server-grade PCB with 2 oz. thickened copper DDR5 MEMORY, PCIe 5.0 & 3.0 x16 SLOTS - 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7000+ MHz); Primary PCIe x16 slot supports PCIe 5.0 (128Gbps) and includes Steel Armor, secondary PCIe x16 slot supports PCIe 3.0 TRIPLE M.2 CONNECTORS - Storage options include 3 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent thermal throttling during hyper-fast SSD access WI-FI 6E CONNECTIVITY - Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost (supports S/PDIF output)
