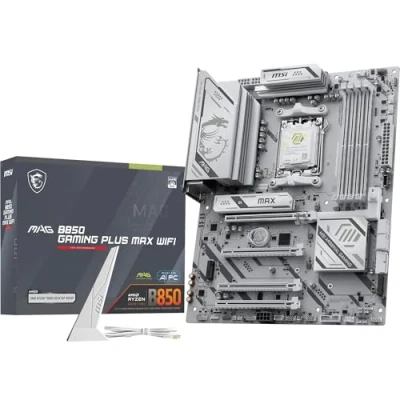

MSI MAG B850 GAMING PLUS MAX WIFI (AM5) (7E56 030R)

TechInn

Msi Mag B850 Gaming Plus Max Motherboard. Unleash gaming power with the MSI MAG B850 Gaming Plus MAX motherboard. Designed for AMD Ryzen 7000/8000/9000 series processors (Socket AM5), it boasts blazing-fast DDR5 support up to 8200MHz and a massive 256GB capacity. Experience next-gen connectivity with Wi-Fi 7, 5 Gigabit Ethernet, and Bluetooth 5.4. With three M.2 slots (PCIe 5.0 on the first), seven total storage device support, and robust cooling options including multiple CPU fan connectors, this ATX board is built for peak performance and extensive customization. Realtek ALC897 audio delivers immersive sound, while RAID support offers data redundancy. Elevate your setup with this feature-rich foundation for ultimate gaming. Supported memory clock speeds: 6400 5600 8200 MHz 4800Maximum internal memory: 256 GBMotherboard chipset: AMD B850Supported storage drive types: HDD & SSDAudio chip: Realtek ALC897Bluetooth: YesDisplayPorts quantity: 1Ethernet LAN: YesRAID levels: 0 1Number of storage drives supported: 7Ethernet interface type: 5 Gigabit EthernetTotal number of SATA connectors: 4Bluetooth version: 5.41st M.2 highest PCI Express generation: 5.02nd M.2 highest PCI Express generation: 4.0Top Wi-Fi standard: Wi-Fi 7 (802.11be)2nd M.2 largest key size: 22110Number of M.2 (M) slots: 3Depth: 304.8 mmDisplayPort version: 1.2USB 2.0 connectors: 4Processor socket: Socket AM5Motherboard chipset family: AMDMemory slots type: DIMMWi-Fi standards: Wi-Fi 6E (802.11ax) 802.11b 802.11a Wi-Fi 6 (802.11ax) 802.11g Wi-Fi 5 (802.11ac) Wi-Fi 7 (802.11be) Wi-Fi 4 (802.11n)USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1Audio output channels: 7.1 channelsUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1Number of SATA III connectors: 4Memory channels: Dual-channelCPU fan connector: YesCompatible processor series: AMD Ryzen 9000 Series AMD Ryzen 7000 Series AMD Ryzen 8000 SeriesNumber of memory slots: 41st M.2 largest key size: 2280Wi-Fi: YesUSB 3.2 Gen 1 (3.1 Gen 1) connectors: 4Processor manufacturer: AMDNumber of CPU fan connectors: 6Windows operating systems supported: Windows 11 x64Supported storage drive interfaces: M.2, Micro SATA IIIRAID support: YesNumber of water pump connectors: 1Motherboard form factor: ATXSupported memory types: DDR5-SDRAMNumber of HDDs supported: 4USB 2.0 ports quantity: 4Supported processor sockets: Socket AM5USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2Width: 243.8 mmRGB LED pin header: YesEthernet LAN (RJ-45) ports: 1Supported memory clock speed (max): 8200 MHzECC сompatibility: Non-ECCNumber of RGB LED pin headers: 33rd M.2 highest PCI Express generation: 4.03rd M.2 largest key size: 2280. tradeinn Techinn

Amazon

ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MAG B850 GAMING PLUS MAX WIFI employs a 12 Duet Rail Power System (P-PAK) VRM for the AMD B850 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture FROZR GUARD - Premium cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, and a Combo-fan (for pump & system) header (3A) DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, up to 8200+ MT/s); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards TRIPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot, 1 x M.2 Gen4 x4 64Gbps slot and 1 x M.2 Gen4 x2 32Gbps slot; Features EZ M.2 Shield Frozr II to prevent thermal throttling and EZ M.2 Clip II for EZ DIY experience CONNECTIVITY - Network hardware includes the latest Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB 10G Type-C and 7.1 HD Audio with Audio Boost (supports S/PDIF output)

Currys

This MSI MAG motherboard lets you build a PC based on a 9000 series AMD processor and DDR5 RAM. The PCIe 5.0 expansion slot lets you hook up most recent graphics cards for a high-end setup. Plus, the advanced heatsinks and M.2 Shield Frozr II cooling keep your system stable, even under heavy workloads.Good to knowB850 chipset - compatible with next-generation AMD componentsFour SATA slots - room to add traditional storage drives to your buildUSB-A, USB-C, HDMI and DisplayPortThree Addressable RGB headersWiFi 7 and 5G LAN portBluetooth 5.4HD audio
