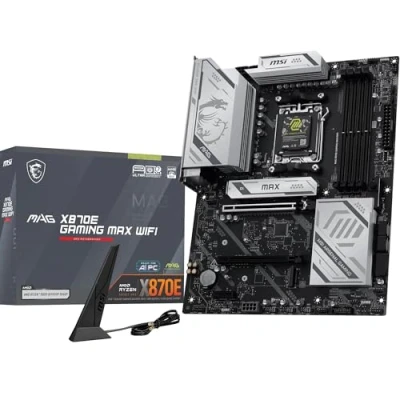

MSI MAG X870E GAMING MAX WIFI Motherboard, ATX Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5 DDR5 Memory Boost (up to 8200+ MT/s OC), PCIe 5.0 x16, M.2 Gen5, Wi Fi 7, 5G LAN

Msi Mag X870e Gaming Max Motherboard. Unleash peak performance with the MSI MAG X870E Gaming Max motherboard. Built for Socket AM5, it supports AMD Ryzen 7000, 8000, and 9000 series processors. Experience lightning-fast storage with three M.2 slots, including PCIe 5.0 support for the primary drive. Enjoy robust connectivity with Wi-Fi 7, Bluetooth 5.4, and 5 Gigabit Ethernet. This ATX board boasts DDR5 memory support up to 8200+ MHz, 256GB maximum capacity, and a suite of USB ports. Dominate your games and demanding tasks with this powerful foundation. 2nd M.2 largest key size: 221101st M.2 highest PCI Express generation: 5.02nd M.2 highest PCI Express generation: 4.03rd M.2 largest key size: 2280Warnings: Do not disassemble to avoid damage to internal components and loss of warranty. Dispose of in accordance with local regulations for electronic waste. Avoid contact with liquids to prevent electronic damage.3rd M.2 highest PCI Express generation: 4.01st M.2 largest key size: 2280ECC сompatibility: Non-ECCBluetooth: YesATX Power connector (24-pin): YesSupported storage drive types: HDD & SSDNumber of M.2 (M) slots: 3PC health monitoring: CPU Temperature Voltage FanSupported memory clock speeds: 7600 7400 8000 7800 5600 7200 5000 6000 4800 6800 6200 6400 6600 5200 7000 8200 MHz 5800 5400Maximum internal memory: 256 GBNumber of SATA III connectors: 4Audio output channels: 7.1 channelsDisplayPorts quantity: 1USB 2.0 connectors: 10EPS power connector (8-pin): YesDisplayPort version: 1.4Supported storage drive interfaces: M.2, SATA IIIEthernet LAN (RJ-45) ports: 1Motherboard chipset: AMD X870Supported processor sockets: Socket AM5Motherboard form factor: ATXS/PDIF out port: NoLAN controller: Realtek RTL8126Motherboard chipset family: AMDUSB 3.2 Gen 1 (3.1 Gen 1) connectors: 6USB 2.0 ports quantity: 4CPU fan connector: YesUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2Total number of SATA connectors: 4HDMI version: 2.1Depth: 304.8 mmNumber of storage drives supported: 7USB4 Gen 2x2 ports quantity: 1Processor socket: Socket AM5Ethernet LAN: YesPCI Express x16 (Gen 4.x) slots: 1Maximum internal memory supported by processor: 256 GBUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1Microphone in: YesUSB 3.2 Gen 2 (3.1 Gen 2) connectors: 2Supported memory clock speed (max): 8200+ MHzWi-Fi standards: 802.11a Wi-Fi 6 (802.11ax) Wi-Fi 4 (802.11n) Wi-Fi 5 (802.11ac) Wi-Fi 7 (802.11be) 802.11g 802.11b Wi-Fi 6E (802.11ax)Bluetooth version: 5.4Number of HDDs supported: 4Memory channels: Dual-channelOn-board graphics card: NoMemory slots type: DIMMHDMI ports quantity: 1Width: 243.8 mmUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2Supported memory types: DDR5 DIMMPCI Express x16 (Gen 5.x) slots: 1Ethernet interface type: 5 Gigabit EthernetCompatible processor series: AMD Ryzen 8000 Series AMD Ryzen 9000 Series AMD Ryzen 7000 SeriesProcessor manufacturer: AMDTop Wi-Fi standard: Wi-Fi 7 (802.11be)Number of memory slots: 4Wi-Fi: Yes. tradeinn Techinn

ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MAG X870E GAMING MAX WIFI employs a 12 Duet Rail Power Phase with 60A SPS for the AMD X870E chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A) DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, up to 8200+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards TRIPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot, 2 x M.2 Gen4 x4 64Gbps slots with EZ M.2 Shield Frozr II to prevent thermal throttling ULTRA CONNECT - Network hardware includes the latest Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB4 Type-C 40Gbps with display output and 7.1-HD Audio with Audio Boost
