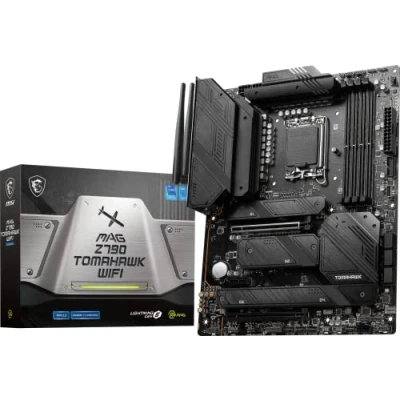

MSI MAG Z790 TOMAHAWK WIFI Motherboard ATX Supports Intel Core 12/13th Gen Processors, LGA 1700, DDR5 Boost (7200+MHz/OC), 1 x PCIe 5.0 x16, 4.0 5 M.2 Gen4, 2.5Gbps LAN, Wi Fi 6E

14TH, 13TH & 12TH GEN CORE, HIGH PERFORMANCE - The MAG Z790 TOMAHAWK WIFI employs a 16 Duet Rail Power System (90A, SPS) for the Intel Z790 chipset (LGA 1700, 14th, 13th & 12th Gen Core) with Core Boost architecture for high CPU core count power demands INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer server grade PCB with 2 oz. thickened copper DDR5 MEMORY, PCIe 5.0 & 4.0 x16 SLOTS - 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7200+ MHz); A PCIe 5.0 x16 Steel Armor slot supports the primary graphics card (secondary PCIe 4.0 x16 slot) QUADRUPLE M.2 CONNECTORS - Storage options include 4 x M.2 Gen4 x4 64Gb/s slots with Shield Frozr to prevent thermal throttling during hyper-fast SSD access WI-FI 6E CONNECTIVITY - Network hardware includes Wi-Fi 6E with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)
