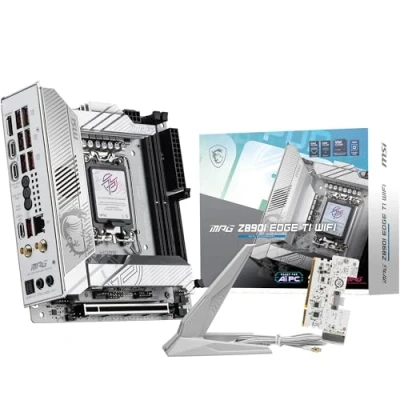

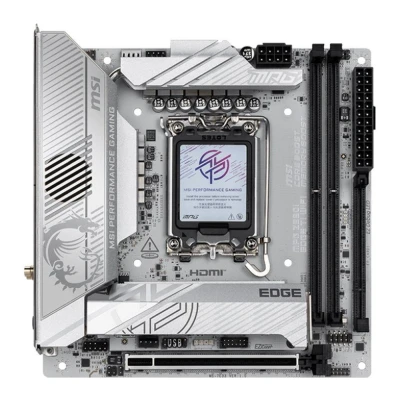

MSI MPG Z890I EDGE TI WIFI Motherboard, Mini ITX Supports Intel Core Ultra Processors (Series 2), LGA 1851 110A SPS VRM, DDR5 Memory Boost (8600+ MT/s OC), PCIe 5.0 x16, M.2 Gen5, Wi Fi 7, 5G LAN

Msi Mpg Z890i Edge Ti Wifi Motherboard Silver . Unleash next-gen performance with the MSI MPG Z890I EDGE TI WIFI motherboard. Designed for Intel Core Ultra (Series 2) processors on the LGA 1851 socket, this Mini-ITX board boasts 4 DIMM slots for up to 128GB of DDR5 RAM (up to 8600MHz). Experience blazing-fast connectivity with Wi-Fi 7 and 5 Gigabit Ethernet, plus ample storage options including M.2 and SATA III with RAID 0, 5, and 10 support. Enhanced by a premium Realtek ALC4080 audio chip and Thunderbolt 4, it´s the ultimate compact powerhouse for demanding PCs. MSI MPG Z890I EDGE TI WIFI.Processor manufacturer:Intel, Processor socket:LGA 1851 (Socket V1), Compatible processor:Intel Core Ultra (Series 2).Supported memory types:DDR5-SDRAM, Maximum internal memory:128 GB, Memory slots type:DIMM.Supported storage drive interfaces:M.2, SATA III, Supported storage drive types:HDD &SSD, RAID levels:0, 5, 10.Ethernet interface type:5 Gigabit Ethernet, Wi-Fi standard:Wi-Fi 7 (802.11be), Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.Component for:PC, Form factor:mini ITX, Chipset family:Intel.Specifications:- Processor manufacturer:Intel.- Processor socket:LGA 1851 (Socket V1).- Compatible processor:Intel Core Ultra (Series 2).- Supported processor sockets:Intel LGA1851.- Maximum internal memory supported by processor:128 GB.- Maximum supported memory clock speed:8600 MHz.- Supported memory types:DDR5-SDRAM.- Number of memory slots:4.- Memory slots type:DIMM.- Maximum internal memory:128 GB.- Memory channels:Dual-channel.- Supported memory clock speeds:4800.6400,8600 MHz.- Wi-Fi standard:Wi-Fi 7 (802.11be).- WLAN controller model:Killer Wi-Fi 7 BE1750.- Ethernet:Yes.- Ethernet interface type:5 Gigabit Ethernet.- Wifi:Yes.- Wi-Fi standards:802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be).- Bluetooth:Yes.- Bluetooth version:5.4.- USB 2.0, connectors:2.- USB 3.2 Gen 1 (3.1 Gen 1) connectors:2.- Number of SATA III connectors:2.- CPU fan connector:Yes.- USB 3.2 Gen 2 (3.1 Gen2):1.- Total SATA connectors:2.- USB 2.0:0.- USB 3.2 Gen 1 (3.1 Gen 1):7.- Number of USB 3. type A ports2 Gen 2 (3.1 Gen 2):0.- Number of USB 3. type C ports2 Gen 2 (3.1 Gen 2):0.- USB 3.2 Gen 1 (3.1 Gen 1) Type C:1.- Ethernet LAN ports (RJ-45):1.- VGA ports (D-Sub):0.- HDMI ports:1.- Number of DVI-D ports:0.- HDMI version:2.1.- Number of Thunderbolt ports:2.- RAID support:Yes.- Number of storage drives supported:2.- Supported storage drive interfaces:M.2, SATA III.- Supported storage drive types:HDD & SSD.- RAID levels:0, 5, 10.- Number of HDDs supported:6.- PCI Express x16 slots:1.- Number of M slots.2 (M):4.- Product color:White.- Chipset family:Intel.- Chipset:Intel Z890.- Form factor:Mini ITX.- Audio output channels:7.1 channels.- Sound chip:Realtek ALC4080.- Component for:PC.- Supported Windows operating system:Windows 11 x64.- Width:170 mm.- Depth:170 mm. tradeinn Techinn

ULTRA POWER - SUPPORTS THE LATEST INTEL CORE ULTRA PROCESSORS IN HIGH PERFORMANCE - The MPG Z890I EDGE TI WIFI employs a 10 Duet Rail Power System for the Intel Z890 chipset (LGA 1851, Core Ultra Processors (Series 2) with Core Boost architecture FROZR GUARD - Premium cooling features such as 7W/mK MOSFET thermal pads, an Extended Heatsink with Heat-pipe and Frozr Heatink; Includes chipset heatsink, EZ M.2 Shield Frozr II DDR5 MEMORY, PCIe 5.0 x16 SLOT - 2 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8600+ MT/s OC); PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor support cutting-edge graphics cards QUADRUPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot and 3 x M.2 Gen4 x4 64Gbps slots (1 via 5-in-1 XPANDER Card); Features EZ M.2 Shield Frozr II for EZ DIY experience ULTRA CONNECT - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5G LAN; Rear ports include Thunderbolt 4 Type-C 40Gbps with display output and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)
