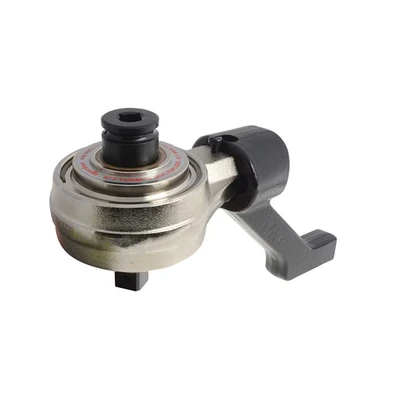

Norbar HT3 1300Nm Torque Multiplier Kit

Norbar 17220 HT3 Torque Multiplier Kit 1300Nm (1/2in input 3/4in output)The 'Highwayman' torque multiplier has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torqueFeatures:5:1 torque multiplication accuracy guaranteed better than ±4%.Supplied with two reaction bar styles for maximum versatility.Robust construction means minimal maintenance and long life.Supplied in a carrying case the Highwayman is ideal for inclusion in the heavy vehicle kit.1300 N.m version has a spare 3/4 output square included in the kit.If calibration is required a UKAS accredited calibration certificate may be ordered (at extra cost)Comes with:Reaction barReaction footCarry caseSpecification:Product's Accuracy: +/- 4%Tool Weight: 3.8 KgOperates between: 96.0 - 960.0 lbf-ft 130.0 - 1300.0 N-m 13.0 - 130.0 kgf-mMultiplication Ratio: 5:1Output Square: 3/4"Input Square: 1/2"Velocity Ratio: 5.333:1Plate Weight: 1.3kgPTDTSADIRNOR17220"

General description The Norbar 17220 HT3 Torque Multiplier is designed for heavy-duty applications, providing a torque range of 130-1,300Nm (96-960 lbf.ft/13-130 kgf.m). With a multiplication ratio of 5:1 and a velocity ratio of 5.333:1, this tool ensures high efficiency and accuracy, guaranteed to be better than ±4%. It features a robust construction for minimal maintenance and maximum durability, making it an essential addition to any heavy vehicle tool kit. Technical specifications Torque Range: 130-1,300Nm (96-960 lbf.ft/13-130 kgf.m) Multiplication Ratio: 5:1 Velocity Ratio: 5.333:1 Output Square: 3/4in Input Square: 1/2in Plate Weight: 1.3kg Tool Weight: 3.8kg Compatibility and accessories Includes two reaction bar styles for maximum versatility Supplied with a spare 3/4in output square Comes in a carrying case
