NuaFix Adjustable Bracket 15 30 Photovoltaic Solar Panels Balcony Power Plant Black Nuasol

ManoMano

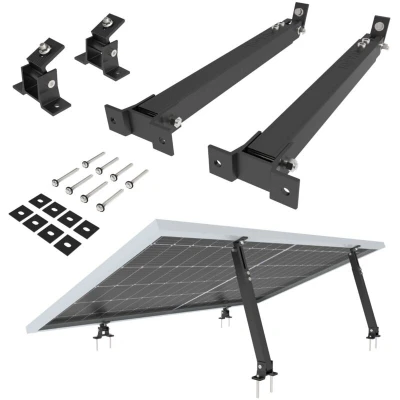

General description NuaFix adjustable brackets are designed for photovoltaic solar panels, allowing for a tilt angle adjustment between 15° and 30°. Made from durable AL6005-T5 aluminum, these weather-resistant brackets are perfect for mounting mini PV systems or balcony power plants on flat surfaces such as garages, gardens, and balconies. The included SUS304 stainless steel bolts and nuts ensure a secure installation. Technical specifications Dimensions (long piece closed): 35 x 35 x 360 mm Adjustable length: 390 - 693 mm Material thickness: 1.5 mm Dimensions of mounting piece: 105 x 35 x 53.8 mm Rubber support dimensions: 30 x 35 x 2 mm Screws: M8 x 60 Weight: 1.87 kg Material of mounting bracket: Aluminium AL6005-T5 Material of screws & nuts: Stainless steel SUS304 Angle adjustment: 15° - 30° Suitable for: Flat surfaces Compatibility and accessories Scope of delivery includes: 2x long bracket 2x short bracket 8x EPDM support 1x screw set Other information

Amazon

[Flexible] Adjust the tilt angle between 15-30° to generate a maximum yield. Universal use Weather-resistant: the bracket set consists of aluminium AL6005-T5 brackets and a stainless steel SUS304 screw set [Easy to install] Conveniently attach the brackets to your solar panel in no time at all and attach it to a flat surface. [Details] Dimensions long strut: 35 x 35 x 360 mm, adjustable length: 390-693 mm, material thickness: 1.5 mm, bracket dimensions: 105 x 35 x 53.8 mm, angle: 15-30° [Everything included!] 2 x long brackets, 2 x short brackets, 4 x EPDM pads, 1 x screw set
