NuaSol mounting Set for Balcony Power Plant 2 Pieces Solar Panel Mount Elevation 15 30 Individually Adjustable incl. Screw & nut Aluminium Flat roof Silver

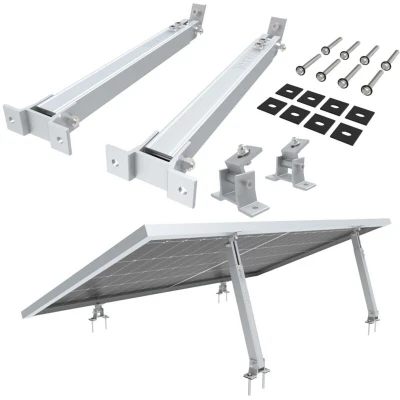

General description NuaFix Adjustable Bracket is designed for photovoltaic solar panels, allowing for a tilt angle adjustment between 15° and 30°. Made from durable AL6005-T5 aluminum, these weather-resistant brackets are perfect for mounting mini PV systems or balcony power plants on flat surfaces such as garages, gardens, and balconies. The included SUS304 stainless steel bolts and nuts ensure a secure installation. Technical specifications Dimensions (long piece closed): 35 x 35 x 360 mm Adjustable length: 390 - 693 mm Material thickness: 1.5 mm Dimensions of mounting piece: 105 x 35 x 53.8 mm Rubber support dimensions: 30 x 35 x 2 mm Screws: M8 x 60 Weight: 1.87 kg Material of mounting bracket: Aluminium AL6005-T5 Material of screws & nuts: Stainless steel SUS304 Angle adjustment: 15 - 30° Color: Silver Compatibility and accessories Suitable for flat surfaces Scope of delivery includes: 2x long bracket, 2x short bracket, 8x EPDM support, 1x screw set Installation The adjustable

[Flexible] Adjust the tilt angle between 15-30° to generate maximum yield. Universal use! [Weatherproof] The bracket set consists of aluminium AL6005-T5 manufactured brackets and a stainless steel SUS304 screw set. [Easy installation] Attach the brackets to your solar panel conveniently and in no time and fix it on a flat surface. [Details] Dimensions long strut: 35 x 35x 360 mm, Adjustable length: 390-693 mm, Material thickness: 1.5 mm, Dimensions bracket: 105x35x53.8 mm, Angle: 15-30°. [2x long bracket, 2x short bracket, 8x EPDM support, 1x screw set
